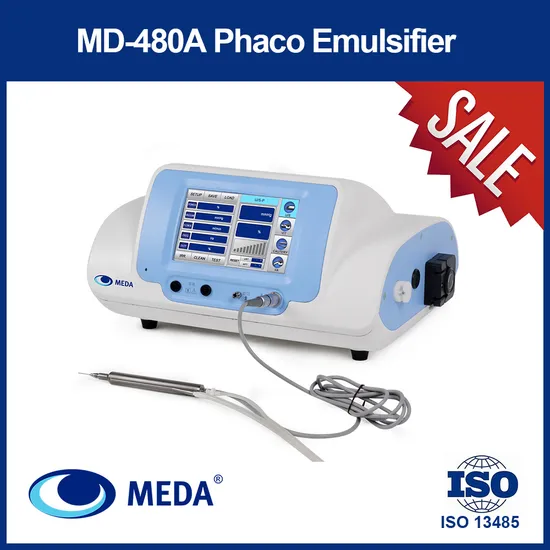

Portable Phaco Emulsifier with High Quality Cataract Surgery (MD-480A)

Product Description

MD-480A Ultrasonic Phaco Emulsifier
Features All parts of the system are fully monitored and controlled by microprocessor technology Smooth and efficient control of emulsification with digital frequency tracing technology for handpieces Easy operations and user-friendly interfaces with large TFT touch screen and functional menus Up to 10 sets of parameters preset meet different requirements and simplify the surgery operation Automatic test checks tubing and handpiece problems (e.g. blocking or leakage) The peristaltic pump gives full control of aspiration flow rate and prevents anterior chamber from shallowing, giving stronger suction when working under I/A mode Built-in vitrectomy and cautery Intelligent voice reminder Specifications

Ultrasonic Emulsification (U/S)
Frequency:	40KHz
Functional Mode:	Continuance, Pulse, Linear and Burst
Continuance:	Emulsifying power range 0~100%
Pulse:	Frequency range 1~99Hz
Linear:	Emulsifying power linearly controlled by the footswitch, varies between 0~100%
Burst:	Burst-stopping time 1.5~0s Burst-working time 5~100ms
Maximum Vacuum:	500 mmHg
Maximum Flux Rate:	40 ml/min
Irrigation/Aspiration (I/A)
Flux Rate:	0~40 ml/min
Reflux Rate:	20 ml/min
Maximum Vacuum:	0~500mmHg
Vitrectomy (VIT)
Cutting Power Source:	Air Pump
Cutting Frequency:	20~600 cuts/min, or single-cut mode
Maximum Vacuum:	500 mmHg (200Ω)
Maximum Flux Rate:	40 ml/min
Cautery
Maximum Power:	10W±20% (200Ω)
Type:	Bipolar
Power preset between:	0~100%

Standard Configuration

MD-480A Phaco Emulsifier	1
Foot Switch	1
Reusable Tubing Kit	1
U/S Handpiece	1
I/A Handpiece	1
U/S Tip (30°)	1
Tip Wrench	1
Test Chamber	1
Irrigation Sleeve	2
Irrigation Sleeve (VIT)	1
VIT Tip	1
Cautery Forceps (cable included)	1

Certificates
ISO13485 and CFDA
