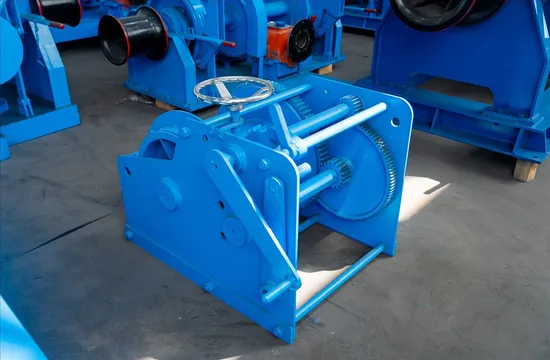

Robust Marine Grade Manual Winch for Marine

Product Description

A MACHINE USED FOR ANCHORING & ANCHORING
Generally,motor,hydraulic motor or diesel engine are used as power.lt is usually installed on the deck of a ship.The trend of its development is to achieve operation,anchor mooring,mooring and automatic mooring for a unit.
Specifications:
1) Drive: Hand/electric/ hydraulic
2) Configuration: single in vertical / horizontal arrangement / double gypsies in horizontal
3) chain size:16 mm to 127 mm
4) Chain speed: complying with lso requirements
5) Clutch: manually operated dog clutch
6)Brake: manually and hydraulic operated band brake.
7) Control: local control
8) Paint: as per your specifications.

Marine Winch
Drive	Electric/Hydraulic /Manual Driven
Configuration	Single/Double Drums
Drum Rope	P.P Rope or SWR
Rated Pull	1 Tones To 150 Tones (1st Layer)
Brake Holding	Up To 250 Tonnes ( Static, 1st Layer)
Wire Speed	Complying With ISO/Classification Society Requirement
Clutch	Manual /Hydraulic Operated Jaw Clutch
Brake	Spring Applied Pneumatically or Hydraulic Released Band Brake
Release	Emergency Quick Release
Control	Local Control Console and remote Control Panel
Options	Drag Brake System ; Spooling Device; Auto-tension; Length and Tension Monitoring SystemsStainless Steel Brake Drum
Our Advantages:	1 High quality with competitive prices 2 Much experience in producting and exporting windlasses 3 Special design for different clients. 4Short delivery time if clients need urgently Certificate: ABS, GL, LR, BV, NK,DNV, CCS,

Jianhu Jixin Trading Co., LTD., founded in 2024 and headguartered in Yancheng City, is a cross-border e-commerce enterprise focusing on foreign trade industry, and its market positioning is to serve overseas customers. The company's products cover tilage machinery, agricultural and forestry horticultural weeding, seeding and fertlizatior machinery, paddy field agricultural machinery and other series of products. The company specializes in the design and production of 12~630kn.m Marine steering gear ,all kinds of Mlarine windlass,anchor winch,mooring winch capstan ,Marine crane,mooring rope.
