Reliable Medical Keyboard with Antivirus Protection and Number Pad
Basic Info.
Model NO.
SKB-107-TP
Compatibility
Windows
Connection Type
USB
Key Layout
Full-size
Key Switch Type
Carbon Pill
Material
Silicone
Special Keys
Function Keys
Material of Keys
Silicone Rubber
Material of Front Panel
Silicone Rubber
Material of Back Panel
Silicone Rubber
Sealing Protection
IP68
Certification
CE, FCC, RoHS, IP68
Wireless
Wired
Application
Laptop, Desktop, Medical or Industrial Application
Interface
USB
Shape
Standard
Key Numbers
107
Text Input
Multi Bond
Product Positioning
Industrial or Medical Applications
Key Technology
Carbon Pill
Working Principle
Silicone Keys
Transport Package
Neutral Packing-Carton Box
Specification
IP68, FCC, CE, RoHS
Trademark
KINGLEADER or customer′s preference
Origin
Shenzhen, Guangdong, China
HS Code
84716071
Production Capacity
3000 PCS/Month
Product Description

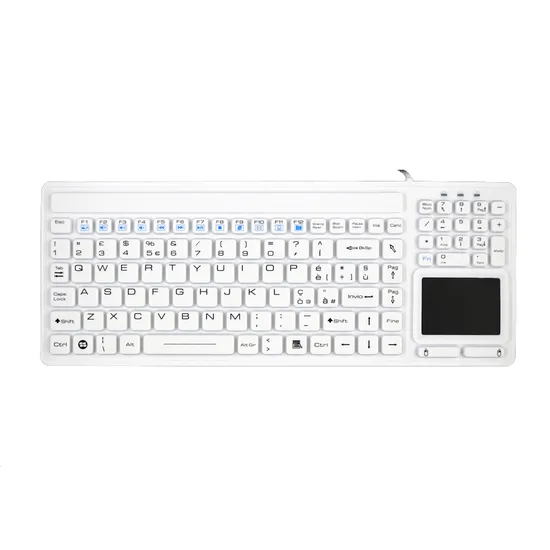

Presenting KINGLEADER's SKB-107-TP - a state-of-the-art 107-key silicone keyboard, complete with 12 function keys, a numeric keypad, and an integrated touchpad. Engineered for excellence, this keyboard boasts a rugged, virustatic design that is fully washable and can be disinfected with any hospital-approved disinfectant. Perfect for industrial or medical environments, the SKB-107-TP is your ideal input terminal solution.Items | Specifications |
| Key Feature | - 107 keys including 12 function keys and numeric keys,built-in touchpad - Use of antimicrobials to contain reproduction of harmful bacterials like *** - EMC Certified for electrical medical equipment - Used in harsh industrial or medical environments where harmful bacteria exists - Colors:Black or white or custom |
| Material | - Silicone |
| Electrical Data | - Power supply voltage: DC 5 V ± 5% - Current rating: <=100 mA - Interface: USB or PS2 - EMC Emission:EN55022(B) |
| Environmental Characteristics | - Operating temperature: -20º C to + 60º C - Storage temperature: - 40º C to + 80º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6 |
| Mechanical Data | - Actuation force: 90 ±15g - Key travel: 1.50mm ±0.5mm - Lifetime (cycles): Min 10, 000, 000 actuations - Sealing protection: IP68 - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 |
| Compatible Operation System | - PS2: Win NT4, 98SE, 98ME, 2000, XP - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10 |
| Reliability | -MTBF:>20,000 hours -MTTR:<30 minutes |
| Certification | -CE,FCC,RoHS -EMC: EN 60601-1-2:2015, EN 61000-3-2:2019, EN 61000-3-3:2013 |
| Dimension | -346.00(L) x 136.00(W) x 11.50(T) mm |
| Weight | 0.65 kgs |
Company Information:
KINGLEADER TECHNOLOGY COMPANY is proud to be an ISO9001:2015 and ISO13485 certified manufacturer. We excel in the R&D, production, sale, and service of rugged keyboards, keypads, trackballs, touchpads, and touchscreen kiosks, offering cutting-edge solutions for demanding environments.
Moreover, we specialize in OEM and ODM manufacturing, including plastic mold building and plastic injection, making these services a cornerstone of our business.
Why Choose Us?
1. ISO9001:2015 and ISO13485 certification ensures top-notch quality.
2. Audited supplier by renowned bodies SGS and BUREAU VERITAS.
3. Competitive pricing paired with rapid response times.
4. Over 20 years of unparalleled experience in rugged input devices and touchscreen kiosks.
5. Exceptional OEM and ODM capabilities.
6. Unmatched flexibility in customization and order sizes.
7. Trusted by numerous world-class brands across the industry.
