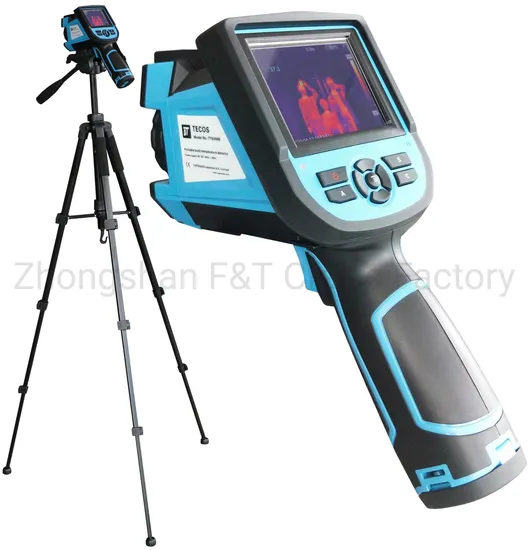

Walk-Through Portable Body Fever Temperature Detector Non-Contact Detection, Auto-Alert

Product Description

We have sold the detectgor to airport, goverment Custom,etc.It can be generally used to scan body temperatures.
Application:
TY6300B body temperature detector can monitor and detect human body temperatures, including hand-foot-mouth disease (HFMD) body temperature, H1N1 swine flu body temperature, H3N2 flu & H7N9 bird flu human fever body temperatures, and various flu or others caused fever.
Feature
1. Fast: Can real-timely detect people who pass through the monitoring region, it will be able to detect human fever body temperatures.
2. Non-contact distance measurement, it can accurately identify which patients are with fever.
3. Automatic alert, optional video record. Real-timely and quickly scan people. Intelligent temperature measurement. Real-time measurement data. Optional: can connect to a monitor or TV.
4. Temperature alarm (sound, color). Date / time. ºC / ºF Fahrenheit temperature.
5. Memory card: 8G Micro SD (TF) card (Standard), the highest support for 16G. Thermal image format: JPEG format.
6. Voice notes: 60 seconds of voice recording, stored together with images (built-in microphone). Video output: PAL/NTSC.
7. Optional: Data output: Mini-USB, image, measurement data, voice transmission to the computer, optional: a tripod.
Technical Data:

1.Measurement method:	Alarm temperature: 37.5 ºC ( this temperature can be free to be set, for example: 37 ºC, 37.1 ºC, 37.2 ºC, 37.3 ºC, 37.4 ºC and so on ), the factory setup is 37.5 ºC alarm, the body temperature exceeds it for an alarm. Body fever alarm.
2 Display method	Pixel: 160 x 120. Thermal sensitivity: ≤0.06ºC@30ºC. Frame rate: 50/60Hz. Image display: color LCD.
3. Temperature range:	20ºC - 50ºC. Accuracy: ±0.3~0.5ºC. Operating temperature: 0ºC ~ +42ºC. Storage temperature: -40ºC ~ +70ºC.
4. Battery operating time:	4 hours continuous operation. Battery: rechargeable lithium battery. Power supply: 110V, 220V ( ±10% ), 50Hz / 60Hz or 12V car power supply.
5. Humidity:	less than 95% (non condensing). Weight: 0.97Kg. Size: 229 mm (L) x 103 mm (W) x 243 mm (H).
Certificate:	Conform to European Medical Device Directive (MDD) 93/42/EEC and EMC Directive 2004/108/EC international safety standards. Have European CE & EMC international Medical Device standard certificates.

Our detector used in Chongqing airport:
For any questions, welcome to contact us.
