China Brand Small Excavators Xe18e 1.8 Tons 1 Ton 2 Ton Mini Hydraulic Crawler Excavator with Spare Parts for Sale

Product Description

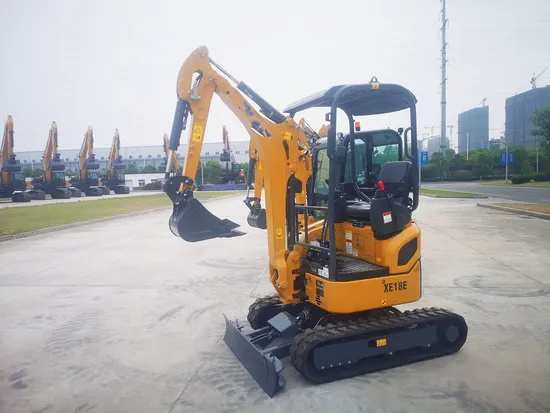

This mini excavator is ready for today's tough jobs. The XE18E with OPG/TOPS/ROPS (ISO 3471) canopy provides excellent visibility, stability, optimal comfort, and safety. For tough jobs in tight corners that demand precision control and state-of-the-art performance. The XE18E is ready to work, offering the following advanced features: Zero-tail swing, hydraulic retractable undercarriage, boom swing, short and long arm, and powerful digging forces. Add high reliability, low operating costs, and superior effificiency, and you have the ideal mini for a wide range of modern jobs.
Operational Comfort The XE18E provides an uncompromised operator environment - which, together with excellent visibility, provides unmatched operator comfort and safety. This machine is built around the operator - providing optimal ergonomics for operators of all sizes. Access to the seat is convenient thanks to the large entry. Easy Access for Maintenance The XE18E was developed with particular attention to ease of service access. With a single access point for the daily maintenance of all main components, a fuel level gauge and refueling through the lockable cap. Product Parameters

Model			Metric unit	XE18E
Operating weight			kg	1795
Engine	Make/model		--	Kubota/D902/EU Stage V
	Fuel/cooling		--	Diesel/Liquid, forced circulation
	No. of cylinders		---	3
	Piston displacement		cm³	898
	Power output		---	11.8 kW (15.8 hp) /2300 rpm (ISO 14396)
	Max torque		---	51.3 Nm/1800 rpm
	Bore × stroke		mm	72 mm×73.6 mm
	Alternator		---	12 V/40 A
Pump	Type		km/h	Load-sensing axial-piston pump with variable displacement with variable displacement
	Maximum system flow rate		L/min	64.4 l/min
	AUX1 & AUX2 maximum flow rate		L/min	20
	AUX1/AUX2 standard relief pressure		---	150 bar
Maximum system pressure	Boom		--	253 bar
	Arm / bucket / travel		---	253/253/210 bar
	Swing		---	110 bar
Number of rollers and track shoes	Bottom rollers (per side)		---	3
	Track shoes		---	Rubber
	Overall track length		mm	1590
	Shoe width		mm	230
Fluid Capacity	Cooling system (radiator capacity)		L	4
	Engine lubrication plus oil filter		L	3.8
	Fuel tank capacity		L	17
	Hydraulic tank capacity		L	18
	Hydraulic system		L	14.2
Noise emission	Noise level LwA (ISO 6395)		dB(A)	93
Swing system	Boom swing, left		.	60
	Boom swing, right		.	50
	Slew rate		rpm	9
Speed & traction	Travel speed (low - high)		km/h	2.1-3.1
	Traction force		kN	15.6
	Gradeability		.	30
Digging forces (ISO 6015)	Digging force, long arm (ISO 6015)		kN	10
	Digging force, long arm (ISO 6015)		kN	8
	Digging force, bucket (ISO 6015)		kN	16
Weight	Operating weight with canopy and bucket (ISO 6016)		kg	1795
	Ground pressure with rubber tracks		kPa	0.29
	Transport mass (no attachment)		kg	1720
	Weight of steel tracks		kg	103
	Weight of rubber tracks		kg	62
Appearance size	A	Overall length	mm	3560
	B	Tail slew radius	mm	620
	C	Tumbler length	mm	2348
	D	Track length	mm	1590
	E	Dozer blade, maximum reach at ground level	mm	1055
	F	Undercarriage length	mm	1880
	G	Dozer blade height	mm	258
	H	Overall width	mm	990/1240
	I	Track gauge	mm	706/1010
	J	Minimum ground clearance	mm	145
	K	Track height	mm	380
	L	Ground clearance of counterweight	mm	455
	M	Overall height of engine hood	mm	1135
	N	Overall height	mm	2348
	O	Track shoe width	mm	230
	P	Working width at maximum right-hand rotation	mm	1300
	Q	Working width at maximum left-hand rotation	mm	1235
	R	Maximum boom offset to the right	mm	335
	S	Maximum boom offset to the left	mm	500
	T	Maximum boom swing angle to the right	mm	50
	U	Maximum boom swing angle to the left	mm	60
Working scope	A	Max. digging height	mm	3475
	B	Max. dumping height	mm	2415
	C	Max. digging depth	mm	2290
	D	Max. vertical wall digging depth	mm	1750
	E	Max. digging reach	mm	3840
	F	Min. swing radius	mm	1550
	G	Maximum dozer lifting height	mm	260
	H	Maximum dozer cutting depth	mm	180
