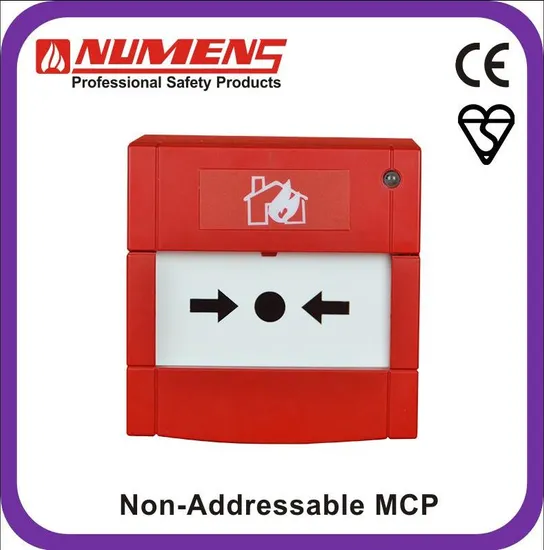

Simple Safety Alarm Security System Conventional Manual Call Point

Product Description

461 manual call points connect to non-addressable fire detection control and indicating equipment, or to addressable fire detection control and indicating equipment that can accept non-addressable devices.
A frangible glass or displacement element provides the operating face, and initiates a fire alarm condition when broken by a building occupant. Replacing the operating face element resets the manual call point.
Features:
· Pressure activated, replaceable frangible glass element available
· Re-useable displacement element available
· Normally-open and normally closed output contacts selectable during installation
· Multiple colors available
· Suitable for indoor use
· Wide operating voltage range
· Compatible with 2-wire and 4-wire fire detection and alarm systems
Specification:

operating voltage	DC(5~33)V
quiescent current	0A
circuit impedance during alarm conditon	0Ω
operating current(max)	3A
operation type	direct operation(type A)

Ordering Information:

Part Number	Red Body	Green Body	Yellow Body
461-001	√	-	-
461-002	-	√	-
461-003	-	-	√
