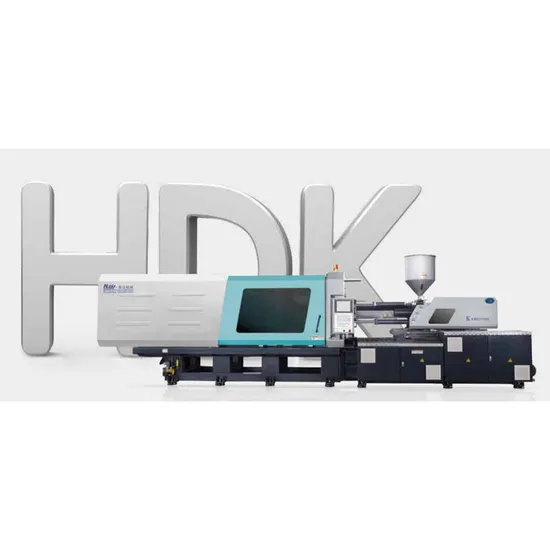

Haida HD360K High-Performance High Speed Thin-Wall Injection Molding Machine

Product Description

L series High precision Servo Energy-saving Injection Machine is a new series model launched on the base of original series, to meet higher requirement of customers. The overall standardization has implemented for the new series models, and the product structure has been simplified to ensure maximum reliability. Apply latest 3D control technology to ensure consistent high quality at lowest price. These products have adopted ergonomics design and components of famous brands, to ensure product quality of every detail. HAIDA L series high precision servo energy-saving injection machine with more advanced design concept, more reliable hardware configuration and higher cost performance is an ideal choice for mid-high end hydraulic machine users, and has built a new standard in the field of mid-high injection machine.
Technical Parameter

ITEM		UNIT	DATA
Injection Unit	Screw Diameter	mm	50	55
	Screw L/D Ratio	L/D	25	23
	Injection Volume	cm3	480	580
	Shot Weight	g	436	528
	Injection Rate	g/s	616	745
	Injection Speed(max)	mm/s	350
	Injection Pressure	Mpa	169	140
	Screw Speed	rpm	350
Clamping Unit	Clamping Force	KN	3600
	Opening Stroke	mm	640
	Mould Thickness(Min-Max)	mm	240-650
	Space Between Tie-Bars	mm	660x660
	Hydraulic Ejection	KN	102
	Ejector Stroke	mm	160
General	Motor Power	KW	37x2
	Heater	KW	21
	System Pressure	Mpa	14
	Machine Dimension	m	7.3x1.9x2.7
	Machine Weight	T	17
	Mould Orientation Ring Diameter	mm	Φ125
	Nozzle Radius	mm	SR10

Injection Molding System

The injection unit optimally designed for injection molding provides higher accuracy and ensures greater stability. The screw length-diameter ratio is more reasonable, the plasticizing ability is stronger, and may match the Special Engineering Plastic Screw, guarantees the product quality optimization. The Integral Guide Rod Seat is novel and beautiful, strong and reliable, and the injection is faster, more stable and more compact. Modular design, fully meet the requirements of personalized processing technology, to provide customers with more choices.

Clamping system

Adopting the international advanced concept, changing the mechanical properties of the clamping mechanism, significantly reducing the deformation of the template, and effectively improving the precision of the products. The distance between the pull rods is larger, and the mould shifting stroke is longer. Large ejection space, standard thimble forced reset mechanism, to meet the requirements of special mold forced reset. The platform shortens the forming cycle, improves the production efficiency, various hydraulic ejection modes, special processing of the pull rod, and the strength is reliable.

Hydraulic System

1, the standard equipped with servo energy-saving pump system, using high-performance servo motor and famous oil pump, with high-quality and reliable driver, perfect to achieve high energy-saving, high precision, high response, low noise, low oil temperature and other excellent characteristics, the utility model has the advantages of compact structure, good self-priming property of the oil pump and little influence by the work 2, equipped with world-class brand hydraulic components, reasonable oil arrangements, smooth and reliable operation, significantly improve the efficiency of the heat will be smaller control; 3, equipped with self-sealing oil filter, machine maintenance easy; 4, according to customer demand, flexible matching and installation of a variety of special functions.

Control System

Water-proof and dust-proof sealed electric box is safe and reliable; the software functions are more powerful and can meet the needs of various mould forming processes; the Internet management system is reserved to realize the remote real-time monitoring and maintenance diagnosis of each injection molding machine, reasonable arrangement of production and other advanced management

Application
APPLICATION FIELD:

Company Profile
HAIDA MACHINERY established in the year 1991 at Ningbo, is one of THE TOP 10 CHINESE injection molding machinery manufacturer. Nearly 30 years, we had established more than 60 sales and service agencies in China and overseas.
We are manufacturing different types of injection molding machines and range starts from 50 Ton to 3300 Ton.
We committed to providing the complete solutions for Plastic. Our name involved in manufacturing and supplying a flawless quality range.
