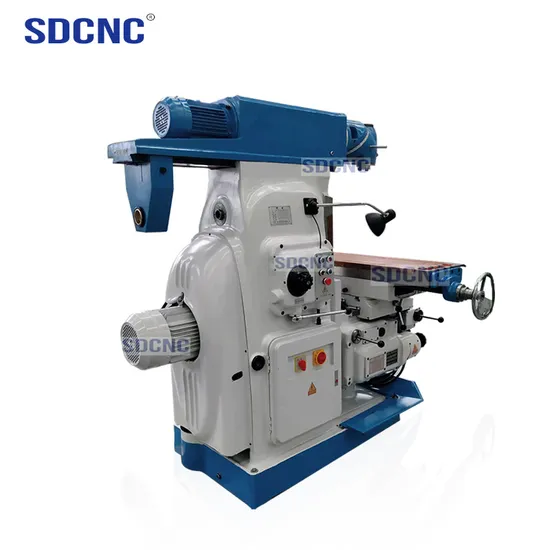

Horizontal Vertical Universal Turret Milling Machine Manufacturing Plant Provided Milling Machine X6232

Product Description

COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong
Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The
company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC
machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe,
CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC
products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling
machine, vertical drill Bed and other machine tools.

The main performance characteristics: 1.It can realize vertical and horizontal milling two processing function;
2.The two grade rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing mold and shell;
4.Table X,Y axis motorized feed Product Parameters

Specifications	Units	X6232
Spindle taper		7:24 ISO40
Distance from spindle nose to table surface	mm	120-490
Distance from spindle axis to column surface	mm	0-500
Spindle speed range(steps)	rpm	35-1660
Vertical milling head rotary angle	°	360
Table size	mm	1250x250
Table travel	mm	600x320x370
Table motorized feed speed (longitudinal /cross)	Mm/min	(8 steps)22-555 (fast 810)
Table vertical lifting speed	Mm/min	560
T slot		3-14-70
Main motor power	KW	2.2
Motorized feed motor power	KW	0.75
Lifting motor power	KW	0.75
Coolant pump motor power	W	90
Coolant pump liquid	L/min	25
Overall dimensions	mm	1700x1560x1750
N.W./G.W.	Kg	1320/1420
