Powerful Pilling Driver for Bore Diameter 90-400mm and Bore Depth 20-120m - Hanfa Photovoltaic Drill Machine

Powerful Pilling Driver for Bore Diameter 90-400mm and Bore Depth 20-120m - Hanfa Photovoltaic Drill Machine

US$38,000.00-40,000.00 1 Set (MOQ)

Basic Info.

Model NO.
HFPV-600
Certification
CE, RoHS, ISO 9001:2000, ISO 9001:2008
Condition
New
Motor
DC Motor
Drill Hole Diameter
90-400mm
Drill Hole Depth
20-120m
Bit Type
DTH Bit
Drilling Way
Impactor
Bore Diameter(Hammer)
90-400mm
Bore Depth
20-120m
Air Consumption
10-26m³/Min
Pipe Diameter
76mm/89mm/102mm
Bore Diameter(Screw)
Max 400mm
Screw Pipe Diameter
130-400mm
Host Power
84kw
Dimension(L*W*H)
5300*1970*2620mm
Weight
5800kg
Once Promotion
3200mm
Transport Package
in 40 Feet Container
Specification
CE, ISO
Trademark
Hanfa
Origin
Zhengzhou City, China
HS Code
843041
Production Capacity
30sets/Month

Product Description

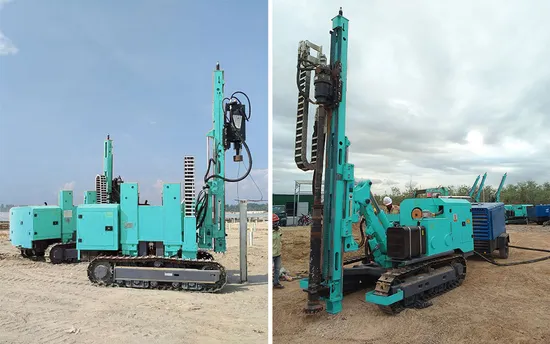

Product Description HFPV-600 hydraulic crawler drill rig, using new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection. The drilling machine structure is compact, while the mast has adjustable compensation function.
Application HFPV-600 drilling rig has reliable performance, high efficiency, suitable for operating conditions. It also reduce costs and improve the efficiency. The drilling rig is mainly used for piling anchor, water wells, photovoltaic solar spiral pile, DTH blasting construction, etc.
Product Parameters
Bore diameter(hammer) 90-400mm Bore depth 20-120m
Air consumption 10-26m³/min Air pressure 0.7-1.6Mpa (medium)
1.6-2.46Mpa (high)
Pipe diameter 76mm/89mm/102mm For rock F=6-20
Bore diameter(screw) Max 400mm Bore depth 0-30m
Screw pipe diameter 130-400mm Once promotion 3200mm
Skid pitch 120º Swinging angle of drilling boom Left and right total 50º
Swinging angle of skid Left and right total 40º Rotation speed 0-110r/min
Host power 84Kw Climb ability 35º
Dimension(L*W*H) 5300*1970*2620mm Weight 5800kg

Company Profile
FAQ 1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.
2. How is the quality of your machine?
Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.
3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.
4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.
5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.
6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
