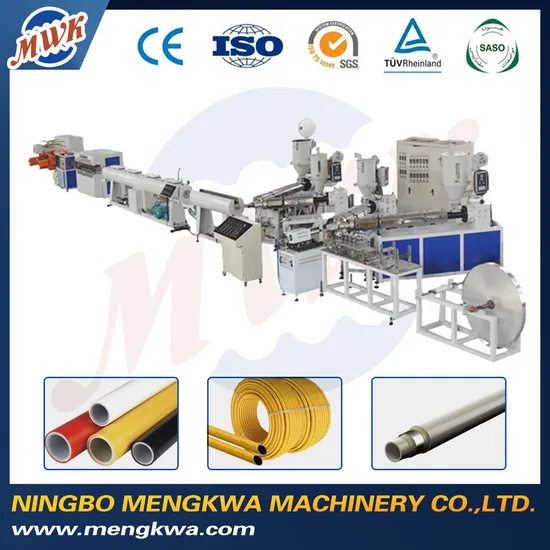

Pex-Al-Pex Pipe Multilayer Gas Pipe Extrusion Line

Pex-Al-Pex Pipe Multilayer Gas Pipe Extrusion Line

US$150,000.00 1 Set (MOQ)

Basic Info.

Screw No.
Single-screw
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Customized
Customized
Condition
New
Function
Water Supply Pipe
Control
PLC Control
Service
Engineers for Installation and Testing
Maintance
Long Years Support
Transport Package
Export Packing
Specification
28000*3000*2500mm
Trademark
mengkwa
Origin
Ningbo
Production Capacity
500sets Per Year

Packaging & Delivery

Package Size
3000.00cm * 1500.00cm * 2000.00cm
Package Gross Weight
4500.000kg

Product Description

PEX Overlap Welding Aluminum-Plastic Composite Pipe Extrusion Line
APPLICATION & FEATURES:
1.Aluminum pipe precise forming technology guarantees precise size and good roundness.
2.It adopts inner and outer pipe separately co-extrusion technology to improve the adhesion strength among layers and to inset smoother surface of the pipe.
3.The production line adopts the PLC control system and human-machine interface, easy to operate and with linkage function.
MAIN TECHNICAL PARAMETERS:
Model LAP-CH32 LAP-CH63
Installed power(kw) 90 162
Total line length(m) 35 40
Pipe diameter(mm) 16-32 32-63

the list of the mahcines in the production line for PEX-AL-PEX dia 16-32mm :
Item Description of
PEX-Al-PEX Composite Pipe Production Line
Qty of
Unit
1 Single screw extruder SJ-50/28 ( Inner Layer of Pipe ) 1
2 Single screw extruder SJ-30/25 (adhesive glue layer) 1
3 Co-extrusion Die Head and moulds ( for inner layer PEX) 4
4 Single screw extruder SJ-50/28 ( Outer Layer of Pipe ) 1
5 Single screw extruder SJ-30/25 (adhesive glue layer) 1
6 Co-extrusion Die Head and moulds ( for out layer PPR) 4
7 Al foil unwinding unit 1
8 Al foil storage unit 1
9 Al foil Horizontal welder (brand of Shanghai,China ) 1
10 Al tube forming system completely 4
11 Al tube welding system
(Ultrasonic welder brand of BRANSON, USA )
1
12 Water cooling tank 2
13 Water dryer 1
14 Jet ink printer ( British brand ) 1
15 Pipe dia. Calibrator Detector (British brand ) 1
16 Haul off unit 1
17 Winder with two coilers 1
18 PLC Electrical control system (Siemens , Omron, ) 1
19 Air Compressor 1

the finished PEX-AL-PEX pipe samples :
the machine line photos for reference :
01 WHY CHOOSE MENGKWA?
1) Mechanical and electric parts of machines for our machines are from famous brands with reliable and stable quality .
2) Machine structures and applicant parts are heavy duty type .
3) Technologies of machines are developing to be much more energy saving and higher production output .
4) Engineers for installation and training are both available in China and abroad .
5) Our after service is available in 24hours by team group to every customer .
6) Our machines reach to 54 countries all over the world since 1996 .
02 TERMS OF PAYMENT
30% deposit and 70% balance before shipment after machine testing approved by customer .
03 PACKING AND LOADING
Safe packing for container loading OR heavy duty iron frame fixing OR wood cases packages .
04 AFTER-SALE SERVICE
1) 24 hours technical support by email, call, video.
2) Warranty for one year after 12 months of shipment.
3) Installation and commissioning engineer will provide the tech long machine, and machine operation of the buyer's personnel on-site training, troubleshooting and machine maintenance. The factory offers free installation training for a week the company engineers, beyond a week, the salaries borne by the customer engineer the factory.
