1m Stainless Steel Sheep / Goate Feeding Trough with Legs

Product Description

Customized 1m Stainless Steel Sheep/Goat Feeding Troughs With Legs

No	Product Name	size
FTW PT 001	1m pig trough	30*100*17*12.5cm
FTW PT 002	1.5m pig trough	30*150*17*12.5cm
FTW PT 003	2m pig trough	30*200*17*12.5cm
FTW PT 004	3m pig trough	30*300*17*12.5cm
FTW ST001	1.95m sheep trough with float ball and drain	32*195*18
FTW ST002	3m sheep trough with float ball and drain	32*300*18
FTW ST003	1m sheep trough	32*100*18

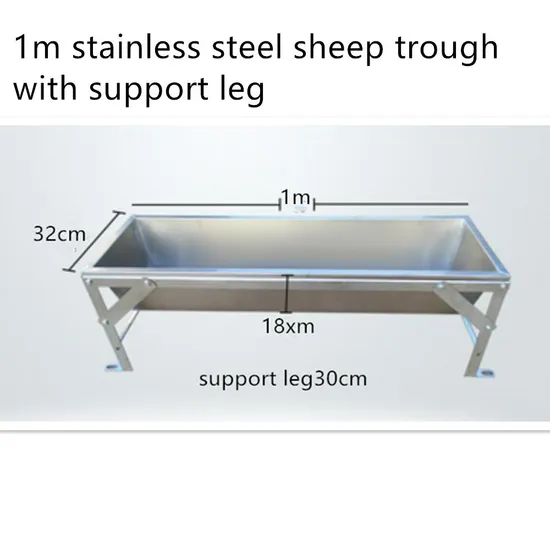

FTW ST004	1m sheep trough with legs	32*100*18+30cm legs
FTW ST005	1.95m sheep trough	32*195*18
FTW ST006	1.95m sheep trough with legs	32*195*18+30cm legs
FTW ST007	3m sheep trough	32*300*18cm
FTW ST008	3m sheep trough with legs	32*300*18+30cm legs
FTW ST009	1.95m sheep trough with heating rod	32*195*18
FTW ST010	3m sheep trough with heating rod	32*300*18cm
FTW CT001	3m cattle trough with float ball and drain	60*300*35cm
FTW CT002	3m calf trough with legs	45*300*24cm
FTW CT003	3m calf trough with legs	45*300*24cm+45cm legs
FTW CT004	1.6m cacttletrough	60*160*35cm
FTW CT005	1.6m cattle trough with legs	60*160*35cm +60 legs
FTW CT006	2m cattle trough	60*200*35cm
FTW CT007	2m cattle trough with legs	60*200*35cm +60 legs
FTW CT008	3m cattle trough	60*300*35cm
FTW CT009	3m cattle trough with legs	60*300*35cm +60 legs
FTW CT010	3m cattle trough with heating rod	60*300*35cm

1.Characteristics:
Durable, easy to installation, easy to moved, easy to transportation. Won't break down or collapse when cattle, pigs, sheep or other large livestock run into or rub against it.Welded one piece steel construction,virtually maintenance free,sag resistant,easy to erect, no stretching

2.Application:
Great for round pens, arenas, paddocks, overnite shows, trail rides and stalls. Designed for your horse safety with rounded corners (no sharp edges).


3Advantages:

1.Our livestock cattle panel meets high standard, and is very popular in the market

2.the panel are inter-locking, very sturdy and easy install, no need to dig holes or lay foundations

3.the metal rails are hot dip galvanized before welding, thus has strong capability of anticorrosive.

4.Product detailes. Sheep or goat panels, these are the ultimate 3 mm thick on the net, weighs 25 kilo each, strong and built to last a life time,
Measures 2.1 meters long x 1 meter high, comes with capping, and strong feet, braced for more strength, comes with pins to join
Uprights 30mm x 30 mmx3 mm thick
6 horizontal 25 mm square tube @ 3 mm thick, galvanised product.
Gates measures 700 mm wide x 1 meter high
Gates measures 2100 x 1000 high

Sheep Hurdle 1 (F-001-0001)
Framework	90cm x 150cm, 8 Horizontal Rails
Side uprights	35mm x 35mm x 2mm square section 2pcs/panel
Top Rail& Bottom Rail	28Φx1.5mm round section 2pcs/panel
Infill rails	22Φx1.5mm round section 6pcs/panel
Pin holes	30mm x 50mm x 5mm Flat
	(hole 16mmx30mm)
Center strip	20mm x 4mm Flat 1pcs/panel
Plastic end caps	2 per panel 2pcs/panel
Finish	Hot dipped zinc galvanized after fabrication to EU. Standards
Height	90cm to top of top rail
