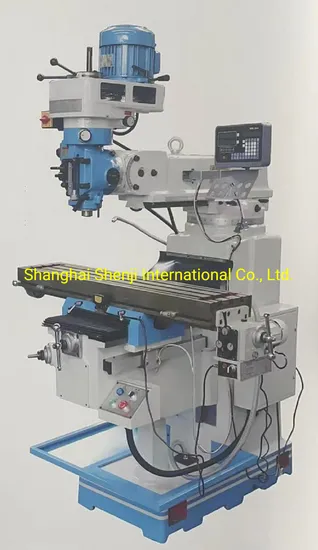

4h Turret Milling Machine
| US$2,500.00-4,500.00 | 1 set (MOQ) |
Basic Info.
Model NO.
4H
Object
Matel
Structure
Turret
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
254X1270mm
Transport Package
Wooden Case
Specification
1600x1750x2200mm
Trademark
SJMC
Origin
China
Production Capacity
20untis/Month
Product Description
4H Turret Milling MachineMilling Machine main performance characteristics:
1. M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2. Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3. Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4. Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
5. Many parts of the machine tools have been applied for patent
| Model | 4H | 5H | 5HW |
| Table size | 254 x 1270 mm | 305X1370mm | 305X1370mm |
| Long travel | 780 mm | 780mm | 800mm |
| Cross travel | 420 mm | 420mm | 420mm |
| Vertical travel | 420 mm | 420mm | 420mm |
| T-slot No and size | 3 x 16x80 | 3x16x80 | 3x16x80 |
| Distance from spindle nose to table surface | 80 - 400 mm | 80-480mm | 150-480mm |
| Spindle hole taper | R8 | R8 | R8 |
| Spindle speed | 75 - 4550 r/min | 75-4550r/min | 75-4550r/min vertical 45-1350r/min horizontal |
| Distance center spindle to guide way | 100-650mm | 100-650mm | 100-650mm |
| Spindle motor | 2.2 kW | 2.2 kW | 2.2 kW |
| Head swivel | 90° | 90° | 90° |
| Head tilting | 45° | 45° | 45° |
| Packing size | 157 x 165 x 210 cm | 180 x 175 x 230 cm | 193 x 175 x 230 cm |
| Weight | 1300 kg | 1600 kg | 1600 kg |
