Plastic film paper roll to sheet cutting machine

Plastic film paper roll to sheet cutting machine

Product Description

Product Description

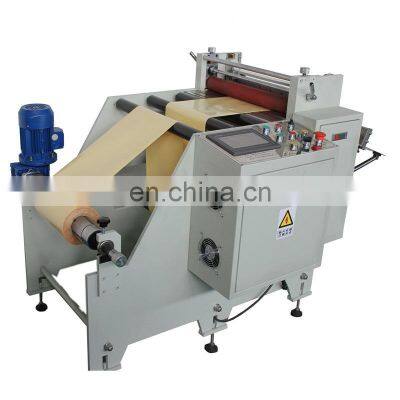

Plastic film paper roll to sheet cutting machine
Below is 5 standard size details of this paper roll to sheet cutting machine
Model
360 Sheet cutter
500 Sheet cutter
600 Paper Roll to Sheet Cutting Machine
Max Feeding Width ( mm )
360
500
600mm
Main Engineer Power ( w )
150
400
750
Speed ( t/m )
110
110
100
Size ( mm )
1150*1050*1230
1250*1090*1250
1300*1200*1250mm
Weight ( kg )
400
500
700
Precision ( mm )
±0.05
±0.05
0.05mm
Power
220V 50HZ
220V 50HZ
220V or 380V

ModelDP-1000 sheet cutting machineDP-800 paper cutting machine
Voltage220V4HP
Power4HP 380V
N.W. 1800KG1500KG
Sheeting Length 0.1-9999.9mm0.1-9999.9mm
Sheeting width1-1000mm1-800mm
Sheeting precision±0.05mm±0.05mm
(0-180mm)Sheeting speed -- 75(cut/min)75(cut/min)
Machine size1950x1800x1350mm1700x1650x1350mm
unwinding shaft diameter3 inch3 inch
unwinding diametermax 600mmmax 600mm

Functional Characteristics:
Machine adopts imported PLC overall control with touch screen display, simple and ease of operation. Fast cutting speed, high precision.
Purpose:
It is applicable for the cutting of PVC film, insulation sheet, Mylar, foam, industrial tape, electronic tape and various inch setting, entirely broken and partially broken electronic materials.
Optional function:mark searching :
