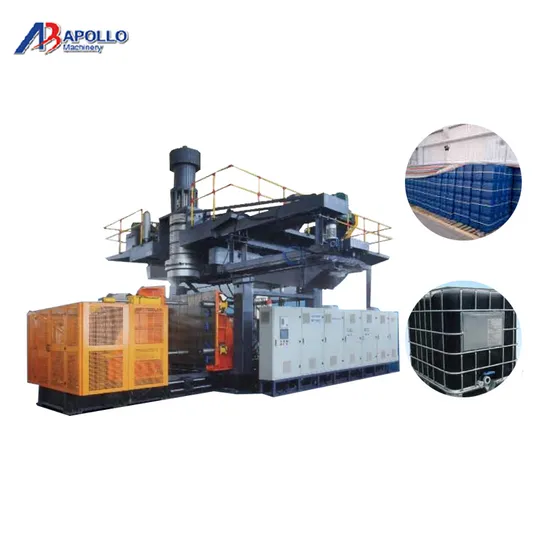

Large Drums Plastic Bottle Extrusion Blow Moulding Machine

Large Drums Plastic Bottle Extrusion Blow Moulding Machine

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
ABLD120
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Application
Bottle
Max.Product Volume
8L
Transport Package
Film Packing
Specification
CE, ISO9001
Trademark
APOLLO
Origin
Zhangjiagang City, Jiangsu Province, China
HS Code
8477301000
Production Capacity
800PC/H

Product Description

HDPE PP Bottle Automatic Blowing Molding Machine

Product DescriptionABLB75 extrusion bottle blow molding machine was specially designed for making plastic water bottles, lubricant oil bottles, detergent bottles, plastic toys and other plastic containers not over 8L.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 8L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.

electronic parts

Name Trader
Micro computer control system Japanese MITSUBISHI
Temperature Controller TAIWAN YANHUA PID
Auxiliary Relay OMRON
contactor Schneider from France
Electric motor Three phase 220V or 380V
Power Source TAIWAN MEANWELL
Transducer TAIDA FROM CHINA
hydraulic parts
Name Trader
Oil pump TAIWAN HIGH-TECH
Valve JAPAN YUKEN
Oil pump and connection JAPAN YUKEN
Sealed part HALLITE
air control system
Name Trader
Cylinder AIRTAC
Air Valve FESTO

Max. Product volume 8 liters
Output capacity 120pcs/h
Screw diameter 75mm
Screw L/D ratio 24 L/D
Screw drive power 22 KW
Screw heating capacity 6 KW
No.of heating zone 4 zones
Output of HDPE 100KG/H
Oil pump drive power 11 KW
Clamping force 78KN
Max.size of mold 188-600mm
Mold stroke 400 X 450mm
Max.die diameter 180mm
Blowing pressure 0.6 mpa
Air Volume 0.7 M³/MIN
Cooling water pressure 0.3mpa
Water consumption 60 L/MIN
Size of Machine 3.6x1.8x2.8m
Weight of machine 6.3 ton
