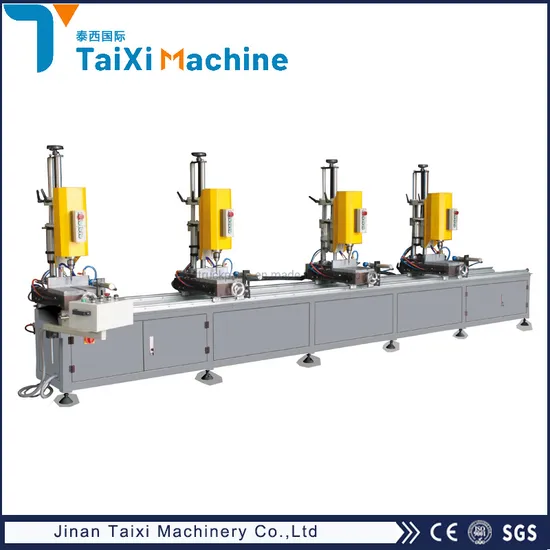

UPVC Aluminum Profile Window Four Head Automatic Screw Drilling and Fastening Machine

Product Description

Auxiliary Machine


Pneumatic Punching Machine LY-16
Function:
Used for drilling holes for ALU and Curtain-wall profiles, and mounting holes for window and doors installation.
Features:
Max. processing section size 250x250mm, and Max. processing length 5000mm.
Meet multi-holes processing requirements.
Feeding system adopts hydro-pneumatic cylinder, ensured a smoothly feeding.
PLC control, each machine head can works individual and combination.
Parameter:

Power supply:	380v 50Hz
Hydraulic gearbox motor power	4X0.75Kw
Rotary speed	1400r/min
Processing range	300-5000mm(Length), 250X250mm(Width X Height), Drill Travel 125 mm
Diameter of drill hole:	Max.13mm
Overall Dimension:	5500mm×1100mm×1800mm
Weight:	1000Kg

Aluminium Profile Bending Machine CNC LWYJ-60
Function:
Used for bending aluminum profile for making arch shape, such as C, U, S,O shape.
Features:
With CNC control system for easy bending different shape.
Using Hydraulic pressure power for heavy duty bending.
Parameter:

Power supply:	380v 50Hz
Air Pressure:	0.5-0.8 Mpa
Motor power:	6 kw
Bending Profile Maximum Width:	150mm
Bending Profile Maximum Thickness:	3mm
Bending Profile Minimum Radius:	230mm
Roller Positioning Precision:	0.01mm
Roller Diameter:	60mm
Machine Size:	1200mmx1100mmx1100mm
Weight:	1500kg

Was founded in January 2008. The company is headquartered in Jinan, a beautiful spring city, with convenient
transportation and superior geographical location. With a registered capital of 10 million yuan, the company has invested
in the construction of a 20000 square meter standardized factory building, which has passed the acceptance of the
national safety assessment and environmental assessment, and meets the requirements of the state for environmental
assessment, safety inspection and fire control. The company has 89 employees, including 21 employees with senior
technical titles, 10 invention patents and new use patents, 8 works reqistration, 21 various certifications and tests. It is a high-tech manufacturing enterprise integrating R& D, production, sales and service art tuyere
