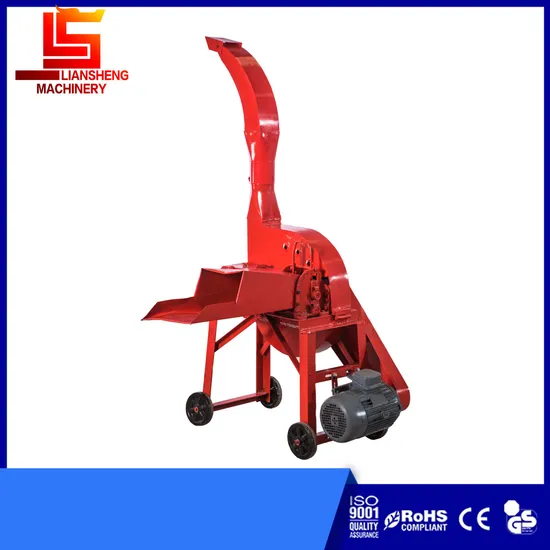

a Straight Throw Grass Straw Section Silage Hay Cutter, for Large Herbivorous Animal Breeding Plant Silage Processing.

Product Description

A Straight Throw Grass Straw Section Silage Hay Cutter, For Large Herbivorous Animal Breeding Plant Silage Processing.
Hay cutter mainly will be different materials such as: dry and wet corn straw, wheat straw, straw and other crops for processing materials, through the hay cutter, cut and other mechanical grinding, production is suitable for livestock breeding cattle, sheep, horses, deer, pigs, chickens, ducks and geese feed feed processing equipment.
The machine is mainly powered by an electric motor.Pass power to the spindle, the spindle at the other end of the gear by gear box and universal pass through speed regulation power to pressure the grass .
when the materials for processing into the upper and lower pressure grass , crushed at the bottom of the iron bar clamping grass and cut into institutions at a certain speed, approved by high speed rotating cutter cut up after the throw outside of the grass.The e other is a tow-mount, which is a tractor that is powered by a diesel engine.
Parameter for chaff cutter:

Model	Power (kw)	Weight(kg)	Dimension(mm)	Output(t/h)
YWFZ-0.4	2.2KW	60	550*450*600	0.4_1.0
YWFZ-1.0	3KW/4HP	80	650*500*600	0.8-1.5
YWFZ-3.0	3 Phase 5.5KW	160	1230*1150*1695	1-3
YWFZ-1.5	3KW/4HP	115	820*460*1150	1-2
YWFZ-2.0	3KW/4HP	125	920*500*1160	1.5-2.5
YWFZ-5.0	3 Phase 5.5KW	350	2690*1210*2390	4.5-5.5
YWFZ-8.0	3 Phase 7.5kw	480	3110*1500*2860	6-8
YWFZ-10.0	3 Phase 15kw	1000	3510*1800*4210	8-10
YWFZ-12.0	3 Phase 18.5kw	1285	3810*1900*4230	12-18
YWFZ-15.0	3 Phase 22kw	1500	4100*1950*4350	15-20
YWFZ-20.0	3 Phase 30kw	2000	4350*2050*4550	20-30
YWFZ-30.0	3 Phase 45kw	3000	4850*2350*4550	25-38
