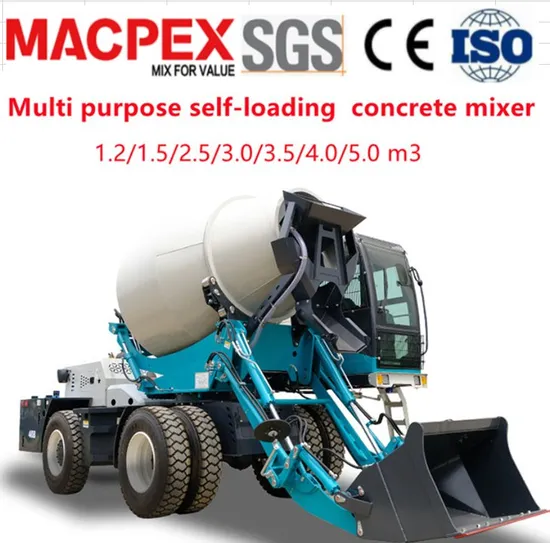

Self Feeding Cement Concrete Mixer for Casting Concrete
| US$18,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MP
Transmission Type
Automatic
Emission Standard
Euro3
Displacement
4.2
Payload
5 Ton
Fuel
Diesel
Drive Mode
4X4
Maximum Horsepower
300-400hp
Condition
New
Specification
1/2/3/3.5/4m3
Trademark
MACPEX
Origin
China
HS Code
8474310000
Production Capacity
200
Product Description
Product features: 1:Lead design, automatic feed mixing system. 2:Easy to operate. 3:Efficient output, saving time and effort, saving cost. 4:Mixing tanker and loader, the transport car is a perfect combination of three and one. 5:Guarantee 6 months, perfect after-sale service. 6:290-degree rotating mixing tank discharge. Parameter: MK-5.5| Model | MK-5.5 |
| Mixing Drum | |
| Mixing Capacity | 5.5 m³ |
| Geometrical Capacity | 7.8 m³ |
| Concrete Output | 5.5 m³/batch, 22 m³/h |
| Drum Rotating Speed | 16.5 Upto 20 rpm |
| Drum Rotating Angle | 220° |
| Engine | |
| Model | FAWDE 6110 |
| | Option: Cummins |
| Type | 6-Cylinder, Turbo-superharged |
| Rated Power | 110 KW (150 HP) |
| Displacement | 7.12 L |
| Emission Standard | Euro II |
| Loading Bucket & Discharge Chute | |
| Loading Bucket Capacity | 0.8 m³ |
| Loading Times to Full Drum | 7 Times |
| Discharge chute | 2 Sets |
| | With Extender |
| | Rotation Angle Range 90°, Manual Shank |
| Water System | |
| Max. Water suction Volume | 550 L/min. (Self-priming Hydraulic Water Pump) |
| Water tank Volume | 2x430 L |
| Mixer | |
| Max. Travel Speed | 42 km/h |
| Gradeability | 45° |
| Min. Turning Radius | 6.2 m |
| Operating Weight | 11,200 Kg |
| Max. Load | 13,200 Kg |
| Max. Gross Weight | 24,400 Kg |
| Overall Dimension (L×W×H) | 8450×3100×3640 mm ( Full Height to 4580 mm ) |
| Fuel Tank Volume | 75 L |
| Total Hydraulic System Capacity | 75 L |
| Oil Tank Volume | 16 L |
| Model | MK-4.0 |
| Mixing Drum | |
| Mixing Capacity | 4.0 m³ |
| Geometrical Capacity | 6.1 m³ |
| Concrete Output | 4 m³/batch, 16 m³/h |
| Drum Rotating Speed | 16.5 Upto 20 rpm |
| Drum Rotating Angle | 290° |
| Engine | |
| Model | YUCHAI YCD4J22G |
| Type | 4-Cylinder, Turbo-superharged |
| Rated Power | 85 KW (116HP) @ 2400 rpm |
| Emission Standard | Euro II |
| Loading Bucket & Discharge Chute | |
| Loading Bucket Capacity | 0.6 m³ |
| Loading Times to Full Drum | 7 Times |
| Discharge chute | 2 Sets |
| | With Extender |
| | Rotation Angle Range 90°, Manual Shank |
| Water System | |
| Max. Water suction Volume | 550 L/min, Self-priming Hydraulic Water Pump |
| Water tank Volume | 2x330 L |
| Mixer | |
| Max. Travel Speed | 35 km/h |
| Gradeability | 40° |
| Min. Turning Radius | 4800 mm |
| Operating Weight | 9,200 kg |
| Max. Load | 9,600 kg |
| Max. Gross Weight | 18,800 kg |
| Overall Dimension (L×W×H) | 7640*2870*4750 mm |
| Fuel Tank Volume | 230 L |
| Total Hydraulic System Capacity | 170 L |
| Oil Tank Volume | 16 L |
| Model | MK-3.5 |
| Mixing Drum | |
| Mixing Capacity | 3.5m³ |
| Geometrical Capacity | 5 m³ |
| Concrete Output | 3.5m³/batch, 14m³/h |
| Drum Rotating Speed | 18 rpm |
| Drum Rotating Angle | 270° |
| Engine | |
| Model | YUCHAI 4105 |
| Type | In-line, 4-Cylinder, 4-Stroke, Turbo Charged,Water Cooled |
| Rated Power | 85 KW |
| Emission Standard | Euro II |
| Loading Bucket & Discharge Chute | |
| Loading Bucket Capacity | 0.6 m³ |
| Loading Times to Full Drum | 5 Times |
| Discharge chute | 2 Sets |
| | With Extender |
| | Rotation angle range 90°, manual shank |
| Water System | |
| Max. Water suction Volume | 310L/min. (Self-priming electronic water pump) |
| Water tank Volume | 2x310 L |
| Mixer | |
| Max. Travel Speed | 30 km/h |
| Gradeability | 30° |
| Min. Turning Radius | 5300 mm |
| Operating Weight | 8000 kg |
| Max. Load | 8200kg |
| Max. Gross Weight | 16200 kg |
| Overall Dimension (L×W×H) | 6600*3350*2850mm |
| Fuel Tank Volume | 75 L |
| Total Hydraulic System Capacity | 75 L |
| Oil Tank Volume | 16 L |
