US$18,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Paper Core Usage
Paintings Packaging
Tube Machine Type
Bending Machine
Layers of Roll Paper
3-25
Wall Thickness of Paper Tube
1-15mm
After-sales Service
Service Machinery Overseas
Name
Paper Tube Making Machine
Transport Package
Film Packaging
Origin
Cangzhou City, Hebei Province
Product Description

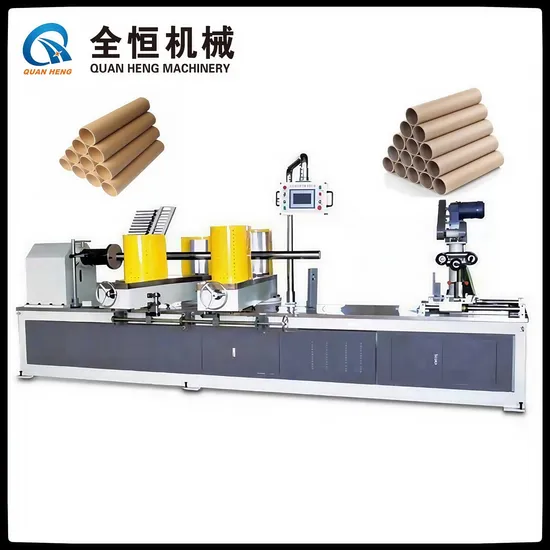

QHTB200-PAPER CORE TUBE MAKING MACHINE
Technical Parameters Number of paper layers 3-30layers Paper tube diameter 20-200(mm) Paper tube thickness 1-25(mm) Coil speed 0-20(m/min) Fixed length mode Numerical control (optical control) Winding machine head No resistance four heads Cutting mode Automatic cutting and cutting of single circular knife Fixing mode of coiling mold Flanged top tightened Gluing Type Double-sided Glue Control mode frequency control Input voltage Optional Operator 1-3 persons
PLC controller | Professional products |
Interface | Professional products |
Program version | CX-P 9.04 |
Frequency converter | Amp products |
Intermediate relay / contactor | chint |
Signal element (close to switch, etc.) | Double Folin brand / Shanghai worker |
Cylinder element | Cable - day Olympic brand |
Synchronous control | X axle servo ball screw |
Synchronous tracking pipe cutting system | European servomotor |
Cutting and lifting | Air movement |
Push the button to stop | Jiangyin Yangtze River brand |
Size (millimeter)
Mainframe size: length * width * height | 2900mm*1700mm*1900mm |
Area: length * width | 20000mm*9000mm |
Hub diameter | 294mm |
Hub height | 360mm430mm |
Minimum pitch | 1000mm |
Maximum wheelbase | 1250mm |
Total weight | 5600kg |
