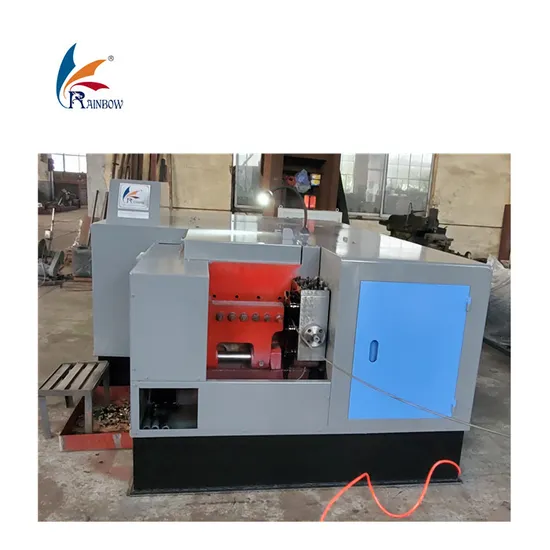

China 6 Station Fully Automatic Nut Bolt Forging Machine

China 6 Station Fully Automatic Nut Bolt Forging Machine

US$20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
RNF
Power Source
Electric
Feature
Precision
Certification
CCC, ISO9001, CE
Warranty
12 Months
Customized
Customized
Advantage
Work Flexible
Condition
New
Station
6
Application
Hex Nut, Flange Nut
Control
PLC Automatic
Color
Customized
Transport Package
Into Container or Wooden Case
Specification
M4-M30
Trademark
Rainbow
Origin
China
Production Capacity
1000 Sets Per Year

Packaging & Delivery

Package Size
250.00cm * 150.00cm * 120.00cm
Package Gross Weight
4000.000kg

Product Description

Product Description

Production Items:

Extra thick nut, Flanged nut, Motorcycle link pin, Oil Plug screw, Hex socket lockup nut, Squire nut, Weld nut, Cap nut, Blind Nut, Chain roller, Expansion anchor, Bicycle and Motorcycle shaped Spare Parts, etc.
Specification

MODEL
STATION MAX. FORGING DIA.(mm) CUT-OFF DIA. (mm) PRODUCT SIZE FORGING LENGTH (mm) DIE PITCH (mm) SLIDER STROKE (mm) OUTPUT (per.min.) MAIN MOTOR (HP) WEIGHT (T) DIMENSION (cm)
RNF08B-6S-12 6 8 8 M4-M5 12 38 40 175/350 10 3.5 195×135×130
RNF11B-6S-14 6 11 10 M5-M6 14 50 60 120/240 15 4.3 230×155×135
RNF11B-6SL-20 6 11 10 M5-M6 20 50 65 110/200 20 4.5 230×155×135
RNF11B-6SL-35 6 11 10 M5-M6 35 50 125 110 20 4.5 230×155×135
RNF14B-6S-18 6 15 14 M6-M8 18 60 70 75/160 20 8 300×195×175
RNF14B-6SL-30 6 15 14 M6-M8 30 60 100 85/160 30 8 300×198×175
RNF14B-6SL-50 6 15 14 M6-M8 50 60 160 85 30 8.5 300×198×175
RNF17B-6S-20 6 17 17 M8-M10 20 70 80 65/130 20 10 350×220×185
RNF17B-6SL-50 6 17 17 M8-M10 50 70 160 80 40 10.5 360×220×185
RNF17B-6SL-70 6 17 17 M8-M10 70 70 220 80 50 10.5 360×220×185
RNF19B-6S-25 6 20 19 M10-M12 25 80 95 95 40 10.5 360×220×185
RNF19B-6SL-50 6 20 19 M10-M12 50 80 160 75 50 16 380×245×196
RNF19B-6SL-70 6 20 19 M10-M12 70 80 220 65 60 16 380×235×196
RNF22B-6S-30 6 22 22 M12-M14 30 80 160 80 60 18 380×235×196
RNF22B-6SL-60 6 22 22 M12-M14 60 80 220 75 60 18 380×235×196
RNF24B-6S-35 6 24 24 M14-M16 35 100 160 75 75 27.5 550×248×270
RNF24B-6SL-70 6 24 24 M14-M16 70 100 210 65 75 27.5 550×248×270
RNF27B-6S-40 6 27 29 M16-M18 35 100 160 75 100 30 550×248×270
RNF27B-6S-70 6 27 29 M16-M18 70 100 210 65 150 30 550×248×270
RNF33B-6SL-40 6 33 30 M18-M20 35 140 160 70 150 45 650×300×280
RNF33B-6SL-80 6 33 30 M18-M20 80 140 280 60 200 50 650×300×280

Detailed Photos

After Sales Service
