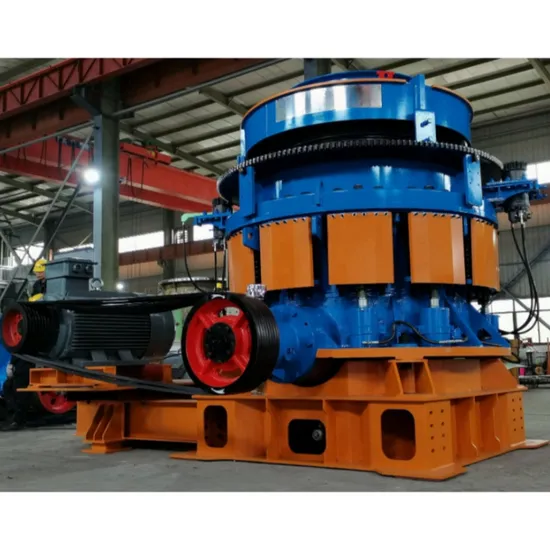

Spring Cone Crusher for Construction

Product Description

Product Description
The compound cone crusher is a modern high performance crusher which integrates high swing frequency, optimized cavity type and reasonable stroke based on the introduction and absorption of foreign technology, according to the customer's demand and based on the principle of lamination crushing and the concept of more break and less grinding. The compound cone crusher can be widely used in metals and nonmetals, nonmetals ores, granite, limestone, quartzite, sandstone, pebbles ,etc. Good product granularity composition; Convenient maintenance and easy operation; Low production cost and wide application.
Overview of Advantages
1.Adopt hydraulic cavity cleaning system and iron overload protection to reduce the time of fault maintenance and improve production efficienc
2.The hydraulic pressure can adjust the discharge port flexibly according to the specific granularity.
3.degree of crushing equipment, large crushing ratio, high production efficiency and large handling capacity. The products that have been broken are cubic in shape with low needle and flake content, no internal cracks and high compressive strength.
4.The equipment is easy to maintain and maintain. The current domestic new high-strength wear-resistant materials for wearing wearing parts are small in loss and long in service life, which can bring considerable economic benefits to customers.
5.The crushing equipment is constantly updated and developed, which extends the wearing parts, has a long service life and is easy to be maintai-ned and repaired.
Technical Parameter

Model	Movable Cone Diameter (mm)	Cavity Type	Feeding Size(mm)		Discharging Opening Size (mm)	Main Shaft Speed (r/min)	Motor Power (kw)	Capacity (t/h)	Overall Dimension (mm)
			Shutting Size(mm)	Opening Size(mm)
CS75	910	Fine	83	102	9-22	580	75	45-91	2821×1880×2164
		Coarse	159	175	13-38			59-163
CS110	1200	Fine	127	131	9-31	485	110	63-188	2821×1974×2651
		Medium	156	156	13-38			100-200
		Coarse	178	191	19-51			141-308
CS160	1295	Fine	109	137	13-31	485	160	109-181	2800×2342×2668
		Medium	188	210	16-38			132-253
		Coarse	216	241	19-51			172-349
CS220	1395	Fine	155	173	19-45	485	220	180-285	3360×2650×3050
		Medium	188	198	22-50			215-330
		Coarse	230	245	25-65			230-570
CS250	1650	Fine	188	209	16-38	485	250	181-327	3911×2870×3771
		Medium	213	241	22-51			220-417
		Coarse	241	268	25-64			299-635
CS315	2134	Fine	253	278	19-38	435	315	281-726	4631×3251×4732
		Medium	303	334	25-51			608-998
		Coarse	334	369	31-64			789-1270
