Product Description

Product Description

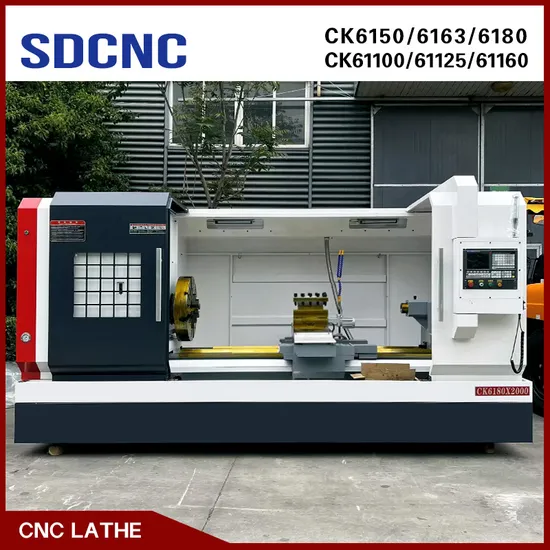

CNC LATHE INTRODUCTION
The series CNC lathe is universal standard automatic machining equipment for metal processing, suitable to process shaft and plate workpiece, with the main characters such as reliable structure, easy operating and high accuracy, this series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc.
FEATURES
One-piece bed adopts high strength iron to ensure rigidity and precision Ultrasonic frequency quenched guide-ways ensure good wear-resistance Detailed Photos
Product Parameters
CNC Lathe Features:
1.Frequency conversion stepless speed regulation
2. With servo system
3. Four position electric turret
4. Standard configuration: spring chuck and chuck double use
5.Optional configuration: hydraulic chuck, gang type tool post
The main specification :


The main feature : 1) Machine are made of high intensional cast iron with good aseismatic and high rigidity
2)Spindle of heavy-cutting structure to achieve high rigidity and high precision
3)With electrical turret,it can achieve high positioning ,fast speed for toolchange and high performance
4)With feeding motor and leadscrwe for type of direct connection,it can assure the machining precision and
positioning accuracy
5)Tailstock can be adopted by hydraulic driving to make sleee travel bigger and easy operation
6)Complete closed cover can protect the iron scraps splashing out.

Specifications	CK6163	CK6180	CK61100
Max.Swing over bed	630mm	800mm	1000mm
Max.workpiece length	1500/2000/3000/4000
Spindle taper	1:20/120
Chuck size	320mm Manual 3 jaws
Spindle bore diameter	104mm
Spindle nose	C11
Range of spindle speeds(3 steps)(Auto.change gear)	Three gears ,smooth adjustment 21-1500r/min ( L 162-1500 M 66-500 H 21-150)
X -axis motor torgue	10N.m	15N.m
Z -axis motor torgue	15N.m	18N.m
Tail stock center travel	250mm
The diameter of tailstock	100mm
Tail stock sleeve taper	Morse NO.6
Tool post type	Vertical-electric four station
Tool section size	240x240mm
X/Z rapid traverse	4/8m/min
Spindle Motor	11KW		15KW
Positioning accuracy	0.020mm
REPositioning accuracy	0.1

Standard Accessories:
1. Frequency Spindle
2. 250mm 3-jaw Manual Chuck
3. 4-station turret
4. Manual Tailstock
5. Full-splash Guard
6. Stepless speed change
Optional Accessories:
1. Hydraulic Solid Chuck
2. Hydraulic Hollow Chuck
3. Hydraulic tailstock
4. 6-station turret
5. Center Rest and follow rest
6. 4-Jaw chuck
CNC Controller system:
GSK; FANUC; Siemens; KND
