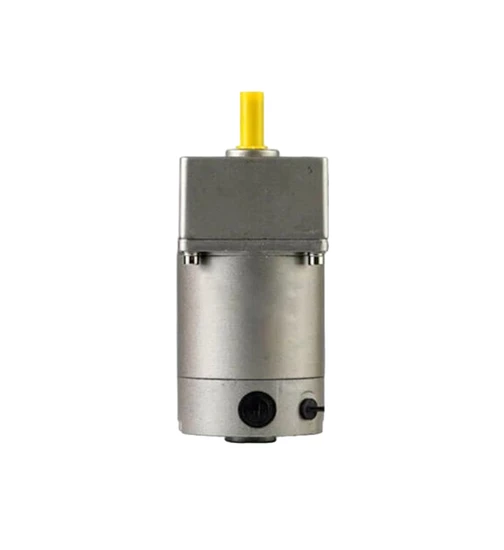

High Torque 6W and 15W DC Brushed Gear Motor for Industrial Applications
| US$30.00-120.00 | 20 Pieces (MOQ) |
Basic Info.
Model NO.
DC Brushed Gear Motor Series
Excitation Mode
Excited
Function
Control, Driving
Casing Protection
Closed Type
Number of Poles
2
Structure and Working Principle
Brush
Type
DC
Certification
ISO9001, CCC
Brand
SL
Structure
Brushed
Power
10W 25W 30W 40W 60W 90W 120W 150W 180W 200W 300W
10W 25W 30W 40W 60W 90W 120W 150W 180W 2
12V-90V
Size
Customized
Transport Package
CTN
Specification
Customized
Trademark
SL
Origin
China
HS Code
8501400000
Production Capacity
20000PCS/Month
Product Description
Product DescriptionWhat is applications use gear motor?
Electric gear motors are used in various applications that require for high output torque and low output rotation speed.
What is gear motor?
Gear motor is combined electric motor with gear reducer box.
Inner Material 1)The stator is made of high quality low carbon steel seamless steel tube and ferrite permanent magnet. 2)The rotor consists of silicon steel sheet,copper coil,commutator and insulating material,etc. 3)The rotor shaft is made of high performance medium carbon alloy steel and processed by special technics.There are round shaft and gear shaft. 4)The bearing and oil seal is selected from well-known brand to ensure good running performance and sealing effect. 5)The wire is made from high temperature resistant and flame retardant material.
| MOTOR FRAME SIZE | 60 mm / 70mm / 80mm / 90mm / 104mm |
| MOTOR TYPE | Brushed |
| OUTPUT POWER | 10W / 15W / 25W / 40W / 60W / 90W / 120 W / 140W / 180W / 200W / 300W(Can Be Customized) |
| OUTPUT SHAFT | 8mm / 10mm / 12mm / 15mm ; Round Shaft, D-Cut Shaft, Key-Way Shaft (Can Be Customized) |
| Voltage type | 12V,24V,90V,220V |
| Accessories | Electric Brake / Encoder |
| GEARBOX FRAME SIZE | 60 mm / 70mm / 80mm / 90mm / 104mm |
| Gear Ratio | 3K-200K |
| Type Of Pinion | GN Type / GU Type |
| Gearbox Type | Regular Square Case gearbox / Right Angle Gearbox / L Type Gearbox |
Size Chart
