Fast Sh-Dtdp-3.0 22mm Maximum Wire Diameter Semi-Automatic Steel Wire Winding Machine

Fast Sh-Dtdp-3.0 22mm Maximum Wire Diameter Semi-Automatic Steel Wire Winding Machine

US$30,000.00-50,000.00 1 Pieces (MOQ)

Basic Info.

Model NO.
SH-DTDP-3.0 Semi-Automatic Winding Machine
Product Name
Semi-Automatic Winding Machine
Keywords
Winding Machine
Series Model
Sh-Dtdp-3.0
Overall Size
2270mm*1330mm*1200mm
Net Weight
400kg
Wiring
2.5 Square Copper Core Cable
Wiring Method
Three-Phase Five-Wire Wiring
Working Voltage
Not Exceeding 380V
Working Power Supply
Three-Wire Four-Wire AC Power Supply
Operating Speed
Inverter Maximum Speed Regulation 50Hz
Maximum Wire Diameter
22mm
Usage
Enterprises, Workshops, Processing Workshops
Customization
Accept
Sample
Accept
MOQ
Low MOQ
Transport Package
Standard Packaging or Customized
Specification
Standard specifications or customized
Trademark
WANRUI
Origin
Jiangsu, China
HS Code
7312100000
Production Capacity
30000 Pieces/Year

Product Description


Product Description

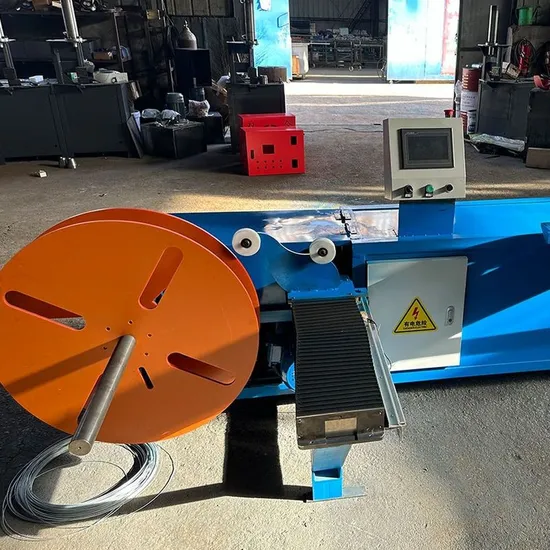

Semi-Automatic Winding Machine
This reversing machine is mainly designed for dividing steel wire ropes for elevators, Solving the problems of difficult clamping. Difficult demolding, and high manual labor intensity in the past. At the same time, it also solves the problem of noncircular and uneven steel wire rope discs, Enterprises, workshops, processing workshops, storefront operations, and other pieces can all be used, improving production efficiency and safety.
After debugging the relevant parameters, with one click start, the motor rotates forward and drives the winding mechanism to run, At the same time, the cable puller arranges the cables and the meter counter records the meters, which can slow down in advance, stop running until the meter is reached, and perform unloading and packaging work, After resetting, proceed to the next work, Easy to operate, convenient for one person to work, time-saving and labor-saving.
Working voltage: SH-DTDP-1.0 (2.0.3.0) external 380v, three-wire four-wire AC power supply. The neutral line must be connected.
Operating speed: The maximum speed regulation of the frequency converter is 50HZ, But it is not recommended to operate at the highest speed.
Maximum wire diameter: 22MM.
Product Parameters
WINDING MACHINE SPECIFICATION
Product Name Semi-Automatic Winding Machine
Keywords Winding Machine
Series Model SH-DTDP-3.0
Overall Size 2270mm*1330mm*1200mm
Net Weight 400KG
Wiring 2.5 Square Copper Core Cable
Wiring Method Three-Phase Five-Wire Wiring
Working Voltage Not Exceeding 380V
Working Power Supply Three-Wire Four-Wire AC Power Supply
Operating Speed Inverter Maximum Speed Regulation 50HZ
Maximum Wire Diameter 22mm
Usage Enterprises, Workshops, Processing Workshops, Store Operations, Etc.
Customization Accept
MOQ Low MOQ
Sample Accept
After Sales Service Is Guaranteed.

Detailed Photos
FAULTS AND ALARMS
In case of emergency, press the emergency stop button to stop the machine.

FAULTS AND ALARMS
The equipment has various safety protection measures such as overvoltage, overcurrent, overload, and overheating. under voltage, and under voltage.
SECURITY AND MAINTENANCE
During the work process, it is important to coordinate the running speed well and avoid safety accidents caused by high-speed operation.
SECURITY AND MAINTENANCE
Do not overload the operation to avoid damaging the equipment or burning out the motor and electrical components.
SECURITY AND MAINTENANCE
Regularly clamp lubricating oil on the gearbox and observe the temperature rise and noise of the motor. if the temperature rise exceeds 85 degrees, stop the machine for inspection.
FAQ
Q1: Can l get some samples?
A1: We are honored to offer you samples for quality check. But you need to pay the shipping fee.
Q2: Do you have the products in stock?
A2: Are to be produced according to your order including: Not samples.
Q3: What's the delivery time?
A3: It usually takes about 25 working days to produce an order from MOQ to a 40HQ container. But the exact delivery time might be different for different orders or at different times.
Q4: How does your factory do regarding quality control?
A4: Quality is a priority. We always attach great importance to quality control from the very beginning to the end of production. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q5: What is your payment?
A5: TT
Q6: What are your shipping terms?
A6: EXW.FOB.CNF.CIF.
