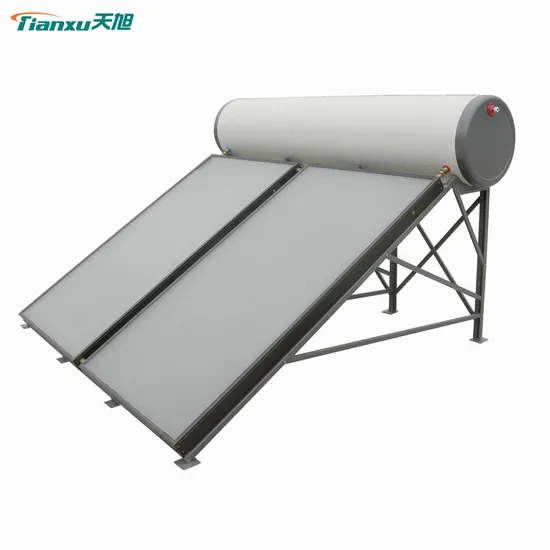

100L-300L All in One Flat Plate Solar Water Heater

Product Description

Product Description
The integrated flat plate pressurized solar water heater produced by our company includes enamel heat storage water tank and flat plate solar collector. The water storage tank is connected with the circulation port of the flat solar collector through the circulation pipeline of the heat exchange medium. The flat plate solar water heater has two kinds of structure forms: platform type and slope type. It is suitable for different roof structures of buildings and does not occupy indoor space.
Product Parameters

Model No. & Specs		TX-2.0-2
Overall Data	Collector dimension(mm)	2000x1000x80
	Overall area(m2)	2.0
	Aperture area(m2)	1.88
Absorber	Header dimension(mm)
	Welding way	Laser welding
	Absorber coating	Black Coating Film
	Riser Dimensions
	Max. working pressure	1.5Mpa
	Absorber Material	Aluminum plate + copper pipes
	Absorption	≥92%
	Emittance	8%
Insulation	Insulation material	Polyurethane
Glazing	Transmittance	92%
	Material	3.2mm Low iron tempered textured glass
Casing	Frame	Aluminum
	Back plate	Hot Galvanized Plate
	Frame color	Black
	Sealing gasket	Integral Silicone glue
Overall weight	Net weight(kg)	32
Quantity	40HQ Container Loading	350

Company Profile
Since its establishment in 2002, Shandong Longguang Tianxu Solar Energy Co., Ltd (hereinafter referred to as "Tianxu") has always engaged itself in the R&D, production, sales and service of high borosilicate glass tubes and new energy products including solar water heaters, solar vacuum tubes, solar heat collecting project, air source heat pump, photovoltaic products, etc. Tianxu has 10 sets of electric furnaces, 70 sets of solar vacuum tube production line and 3 sets of solar water heater production lines. The annual output has reached one million tons of high borosilicate glass, over 16 million solar vacuum tubes makes Tianxu the largest manufacturing base of high borosilicate glass tubes and solar vacuum tubes. In 2015, Tianxu established a joint venture company with Beijing Tsinghua Solar Co., Ltd- the solar vacuum tube technology initiator in the world. The newly established company has the world's most advanced solar vacuum tube production lines.
Our Advantages
Closed design, anti-raining, better condensing Collector heat instantly, lower heat loss Much more transparent glass plate, higher absorption performance. Anti-freezing well combined with architecture. Packaging & Shipping
