Basic Info.
Molding method
Casting Plastic
Core
3" (76mm) or 6" (152mm)
Transport Package
Fumigated Wooden Pallet or Carton
Specification
100% Polypropylene or 100% Polyethylene
Production Capacity
30000tons
Product Description

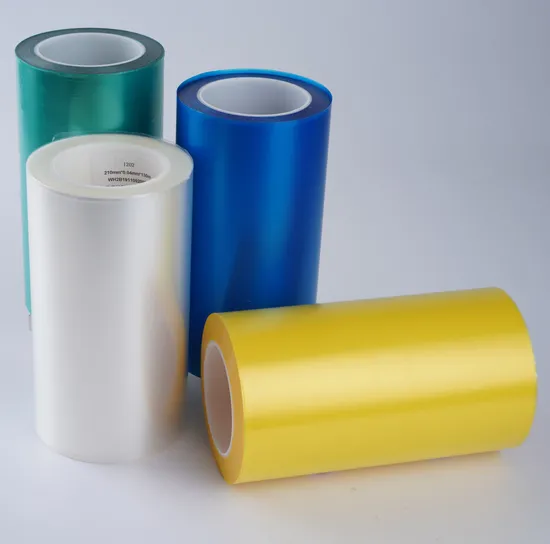

Product Description Transparent; Co-extruded 3-layer film; One side corona treated
TYPICAL APPLICATIONS • Excellent stable adhesion.
• Good re-peeling performance.
• Extremely low crystal point.
• No glue residual,no glue transfer.
Product Parameters General Properties:
Thickness(um) | 25 | 30 | 40 | 50 | 60 | 70 |
Tensile Strenght(Mpa) | MD | 30-50 |
TD | 20-40 |
Elongation at break(%) | MD | 400-600 | 400-600 | 500-800 | 600-1000 | 600-1000 | 600-1000 |
TD | 500-800 | 500-800 | 600-1000 | 800-1000 | 800-1000 | 800-1000 |
Temperature resistance(ºC) | Ordinary | 80 |
High temperature | 120 |
Ultra high temperature | 150 |
Adhesion(gf/25mm) | Low adhesion | 1-6 |
High adhesion | 200-500 |
Transmittance(%) | 69-72 | 70-80 | 68-70 | 68-70 | 68-70 | 57-70 |
Haze(N/15mm) | 20-25 | 10-40 | 37-40 | 43-45 | 28-45 | 40-48 |
Certifications
Company Profile Novel (Huangshan) Packaging Co., Ltd, located in Huangshan city, Anhui province, covers an area of 176000m2, which is the most competent plastic color-printing and laminating flexible packaging manufacturer.
Our product category covers:
1. Plastic film:BOPP, CPP, BOPE, MDOPE,PE,PET,PVC,PS,PC,etc;
2. Vacuum metalized film: VMPET,VMCPP,VMBOPP,VMPE,ALOx PET, etc;
3. Printer:10 colors flexo and 14 colors gravure printing;
4. Laminator:solvent-less and solvent-base lamination stuctures;
5. Bag making;
6. Plastic injection moulding;
7. New type of Ink.
Sustainable recyclable packaging materials:
1.100% Polyethylene (PE) material BOPE/PE and MDOPE/PE;
2.100% Polypropylene (PP) material BOPP/CPP.
Certification:ISO9001,ISO14001,ISO22000,ISO45001,BRC,GRS,SEDEX,etcClients:P&G,Colgate,Mars,Nestle,Mondelez,Yili,Abbott,Kimberly-Clark,etc
Product Display
Workshop
Packaging & Shipping
1.What's your product range?
Our main products covers PP and PE film,vacuum metalized film,flexo and gravure printing film and paper,laminated structure,shaped bag and pouch, injection moulding.
2:Can you do the design for us?
Yes,We provide the OEM service.
3:What information should I let you know if I want to get a quotation?
Please kindly inform us of the materials,specifications,printing,quantity,and other requirements you prefer.
4:Where is your factory located? Can I visit there?
The factory is located in Huagnshan city, Anhui China. You are elcome to visit us!
5:What's your payment term?
T/T,L/C,money gram.
