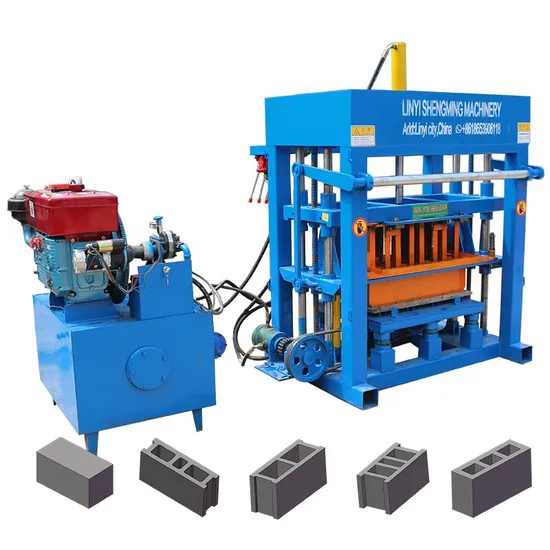

Small Manual Fly Ash Cement Hollow Concrete Paver Solid Brick Machine
Basic Info.
Model NO.
QT4-40D
Certification
CE, ISO
Customized
Customized
Automatic Grade
Semiautomatic
Type
Hydraulic Shock
Model
Qt4-40d
Total Rated Power
18 HP
Daily Capacity
1000-2000 Pieces
Pallet Quantity
400-500 Pieces
Water Consumption
1-3t/Day
Workshop Area
40m2
Power Voltage
380V/220V AC
Labor Quantity
1-3 People
Forming Period
40-45 S
Pressure
16MPa
Weight
1300 Kgs
Pallet Size
850X450/500/550mm
Transport Package
Naked in Container/LCL
Specification
1750*1600*1900mm
Trademark
shengming
Origin
Linyi
HS Code
8474802000
Production Capacity
1000-2000 Pieces
Packaging & Delivery
Package Size
160.00cm * 110.00cm * 210.00cm
Package Gross Weight
1500.000kg
Product Description
QT4-40D Diesel Manual Concrete Hollow Cement Paver Block Making Machine for Sale| Total rated power | 15 Hp | Workshop area | 40M2 |
| Daily capacity | 1000-2000 pieces | Power voltage | 380V/220V AC |
| Pallet quantity | 400-500 pieces | Labor quantity | 1-3 people |
| Water consumption | 1-3T/day | Forming period | 40-45 S |
Production Capacity
| Size(LxWxH)mm | Piece/mold | Piece/Hour | Piece/8 hours |
| 400x200x200mm | 4 | 200 | 1600 |
| 400x150x200mm | 5 | 250 | 2000 |
| 400x100x200mm | 7 | 300 | 2400 |
| 200x100x60mm | 14 | 700 | 5600 |
| 225x112.5x60 | 12 | 600 | 4800 |
Finished Block Showing
Finished Machine Showing
Company Profile
Company Certificate
Transportation
FAQ
Q: what is the material for this machine ?
A: you can use lateriate or other clay material or concrete material, plus a little cement
Q: How many kinds of block can be made by this machine ?
A: by changing mold, this machine can make all type design brick ,block or even paver.
Q: What is the hydraulic oil for this machine ?
A: Summber use 46#, winter use 32#. all easily found locally
Q: Will you provide spare parts for this machine ?
A: we will provide you one year free spare parts.can support machine working for many years
Q:Will you provide installation support?
A: we will provide installation video and manual book.online video avaiable also.
Q:How many days to make the machine if place order?
A:Normally need 15-20 days but all depend on molds quantity.
