Compact Mini CNC Milling Machine, Efficient Machine CNC (BL-V8/V11)

Compact Mini CNC Milling Machine, Efficient Machine CNC (BL-V8/V11)

US$39,000.00-42,000.00 1 set (MOQ)

Basic Info.

Model NO.
BL-V8/V11
Type
Worktable Milling Machine
Object
Metal
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Size
1000×550mm;1200(1300)×600mm
X/Y/Z Axes Travel
800/550/550, 1100/600/600mm
Table Max. Loading
700/900kg
Spindle Nose
Bt40
Spindle Motor
7.5/11;11/15kw
Spindle Speed
8000/10000/12000rpm
Tool Magazine
24t Arm Type
Positioning Precision
±0.005mm
Repeatable Positioning Precision
±0.003mm
Transport Package
Woode Case
Specification
800/550/550mm; 1100/600/600mm
Trademark
BLIN
Origin
China
HS Code
8457101000
Production Capacity
480 Units/Year

Packaging & Delivery

Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg

Product Description

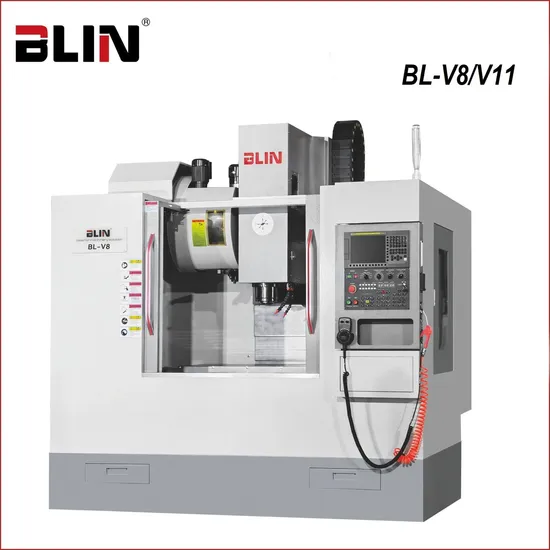

CNC Machining Center/CNC Milling Machine/Milling Machine(BL-V8/V11)
-3 axes ROLLER type linear guideway, Heavy-duty type,suitable for heavy-duty cutting
- Whole production process accord to TAIWAN standard
- Most parts adopt GERMAN/JAPAN/TAIWAN brand
- High speed, high precision, long using lifespan
- Adopt HT300 high class cast iron,after aging treatment and FEA analysis
- Bridge shape column, high rigidity, high stability
- Use 24T Arm type ATC, adopt CAM driving, fast and stable tool changing, tool selection for bi-way as random.
- 3 axes use C3 class precision ball screw, match up nut preloading and ball screw pre-stretching, pre-eliminate backlash and temperature rising, ensure stable positioning and repeatable positioning precision
Details:
Item Specification Unit BL-V8 BL-V11
Worktable Table size mm 1000×550 1200(1300*)×600
T slot(NO./width/gap) mm 5/18/90 5/18/100
Table max. loading kg 700 900
Travel X/Y/Z axes travel mm 800/550/550 1100/600/600
Spindle Distance from spindle nose to table surface mm 120~670 120~720
Distance from spindle center to column face mm 600 650
Spindle type / BT40
Spindle motor kw 7.5/11; 11/15(opt.) 11/15
Spindle speed rpm 8000(option:10000 belt-drive;12000/15000 direct-drive)
Feeding axes X/Y/Z axes linear guideway width mm 35/45/45(ROLLER type)
Z axes 6pcs slide blocks
45/45/45(ROLLER type)
X,Z axes 6pcs slide blocks
X/Y/Z axes max. rapid moving speed m/min 48/48/48 36/36/36
X/Y/Z axes ball screw dia./pitch mm 40/16 40/12
X/Y/Z axes motor torque Nm 22/22/22
Precision Positioning precision mm ±0.005
Repeatable positioning precision mm ±0.003
Tool magazine Tool magazine type / 24T Arm type
Max. tool weight kg 7 8
Max. tool length mm 280
Max. tool dia.(fully loaded) mm 80
Max. tool dia.(no adjacent) mm 110
Tool changing time / Tool to tool: 1.8s Tool to tool: 2s
Others Overall Size mm 2500×2200×2500 2900×2300×2600
Weight kg 5500 7200

Main parts brand:
Item Brand
Spindle bearing JAPAN-NSK/GERMANY-FAG
Ball screw bearing JAPAN-NACHI/GERMANY-FAG
Linear guideway TAIWAN-HIWIN,PMI/GERMANY-REXROTH
Ball screw TAIWAN-HIWIN/PMI
Shaft coupler JAPAN-NBK/MIKI PULLEY
Spindle TAIWAN-KENTURN/VYU CHENG
Tool magazine TAIWAN-DEX
Booster cylinder TAIWAN-CHEN SOUND
Pnuematic parts TAIWAN-MINDMAN
Lubrication pump JAPAN-LUBE
Electric parts FRANCE-SCHNEIDER

Standard configuration:
-FANUC 0i MF CNC Controller
-24T Arm type tool magazine
Optional configuration:
-SIEMENS 828D CNC controller
-Chip conveyor
-Coolant through spindle
-Tool setting probe
-4th axes
-5th axes
