Multi Functional Stainless Steel Crystallization Setup Photochemical Reactor

Multi Functional Stainless Steel Crystallization Setup Photochemical Reactor

US$500.00-1,500.00 1 set (MOQ)

Basic Info.

Application
Granules, Liquid, Liquid with Suspended Solids, Powder, Viscous Fluid
Application Area
Agricultural Chemicals, Chemical, Daily Chemical, Engineering & Construction, Metallurgy&Mineral, Pharmaceutical
Certification
CE, ISO
Condition
New
Control System
Button Control
Main Material
Glass, Plastic
Mixing Capacity
30L
Mixing Drum Shape
Frame (Anchor) Mixer
Power Supply
AC
Safety Features
Anti-Slip Feet
Speed Control
Variable Speed
Speed Range
60 R/min & Above
Stirring Type
Spiral
Temperature Control
With Heating
Type
Magnetic Stirrer
Voltage
110/220/380V ,50/60Hz
Warranty
1 year
Working
Convection Mixer
Temperature
-60/+200 C
Filtration Vessel
10,30, 60,80,100, 150,200 Liter
Pressure
0.096MPa or Customized
Nut
Ring Nut
Transport Package
Standard Export Wooden Case
Specification
30L
Trademark
XINCHEN
Origin
Nanjing China
HS Code
8419899090
Production Capacity
50/Month

Product Description


The Glass Reactor can be designed to be single, double or triple wall glass reactor.The reaction menstruum can be put into the inner layer to do stirring, interlayer can be connected with cold and heat source ( frozen liquid, hot water or hot oil) to do circulating heating or cooling reaction.
Under seting the constant temperature, and in sealed glass reactor, stirring reaction can be carried out at atmospheric pressure or negative pressure conditions according to the operating,and also can carry out reflux and distillation of the reaction solution.
Ultrasonic reactor is the use of ultrasonic dispersion, crushing, activation and other multiple effects to destroy the solvent structure, improve the reaction activity, disperse crushed particles, to futher reduce the diameter of the wire.
The test proved that: ultrasonic reactor play a significant role in the superfine grinding, oil emulsification extraction and dispersed in nano scale for the powder material in liquid phase. At the same time, it can accelerate the reaction, emulsifying reaction and homogeneous reaction of powdery substance. Product Parameters
Model XC-1L XC-2L XC-3L XC-5L XC-10L XC-20L
Volume (L) 1 2 3 5 10 20
Jacket Volume (L) 0.3 0.6 0.9 1.5 3 6
Lid Diameter (mm) 150 150 150 180 265 265
External diameter of the inner vessel (mm) 113 135 150 180 230 290
External diameter of the outer vessel (mm) 150 180 200 230 290 330
Vessel height (mm) 250 280 300 400 450 550
Motor power (W) 90 90 90 120 120 140
Vacuum degree(Mpa) 0.096
Rotation Speed (rpm) 50-800 50-800 50-600 50-600 50-600 50-600
Torque (Ncm) 30 30 30 162 162 210
Dimensions(mm) 330*350*800 320*350*800 320*350*900 450*450*1100 500*500*1200 500*500*1450
Power 220V 50Hz
Model XC-30L XC-50L XC-80L XC-100L XC-150L XC-200L
Volume (L) 30 50 80 100 150 200
Jacket Volume (L) 10 16 24 30 45 60
Lid Diameter (mm) 265 265 340 340 340 340
External diameter of the inner vessel (mm) 330 365 410 460 550 600
External diameter of the outer vessel (mm) 365 410 460 500 600 650
Vessel height (mm) 730 850 950 950 980 1200
Motor power (W) 140 180 250 250 400 750
Vacuum degree(Mpa) 0.096
Rotation Speed (rpm) 50-600
Torque (Ncm) 210 300 350 350 400 400
Dimensions(mm) 500*500*1600 600*600*1800 700*700*2400 700*700*2600 800*800*2800 1200*900*3200
Power 220V 50Hz
Product Features 1.The whole stainless steel column, mobile framework, 4-6 or more opening ports of the reaction kettle lid, with full set of glass parts for reflux, adding liquid, temperature measurement, and so on. 2. Use G3.3 high borosilicate glass, with good chemial and physical properties. 3. Alloy steel mechanical seal, PTFE connector, to maintain a high precision seal in the working condition. 4. With PT100 sensor probe, high precision temperature measurement, small errors, high efficiency. 5. AC reducer motor, strong torsion, no noise. 6. PTFE discharge value, moveable interface, discharging completely and quickly. 7. Strong design ability, support customise on request. (such as PH meter, sand core filter etc) 8. Electrical explosion-proof model available.
Model NKG-0.5KW NKG-1.0KW NKG-1.5KW NKG-2.0KW NKG-3.0KW
Resonant frequency(KHZ) 20±1
Power(W) 500 1000 1500 2000 3000
Input Voltage(V) 220±10%
The highest withstand temperature -80ºC~250ºC
Emission head diameter 50 50 50 50 50
The ultrasonic generator 1.Fuzzy program intelligent control
2.DDS frequency automatic detection and tracking
3.DSP control circuit
4.Ultrasonic power putput adjustable
5.Power device IGBT
6.Continuous ultrasonic time up to 99hours

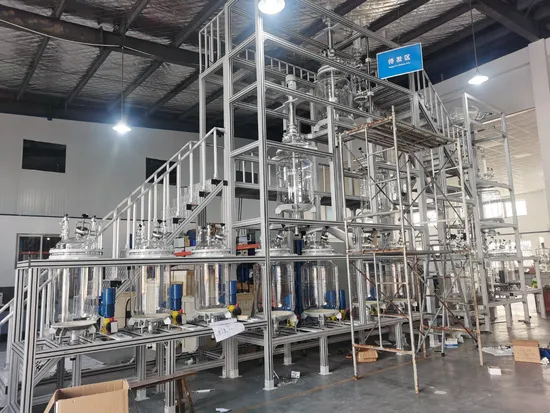

Project Photos
We professional manufacture different kinds of glass reactor systems.
We have strong design, manufacture and site installation ability.
As a manufacturer not trading company, we can supply you with high quality , best price and fast delivery service.
1.Packing method: Standard export wooden box or base on your requests.
2. Shipping method: By Express door to door, or by ship, based on your choice.
1) If delivery goods by Express, door to door service , generally about 5-7 working days reach.
2) If by air, deliver goods to your destination airport, about 5 working days reach.
3) If by sea, deliver goods to your local seaport, specific days and cost is based on different shipping line.
3. Warranty
Any broken or damages of glass parts caused by delivery, will be afforded by Nanjing Ningkai company.
