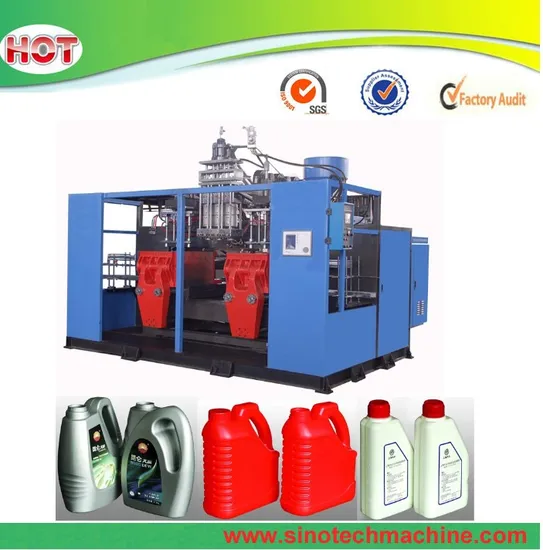

10L Lubricant Bottle Blowing Molding Machine/ PP HDPE Plastic Bottle Blow Moulding Machine

10L Lubricant Bottle Blowing Molding Machine/ PP HDPE Plastic Bottle Blow Moulding Machine

US$80,000.00-90,000.00 1 Set (MOQ)

Basic Info.

Model NO.
STZ-10L
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Made in
China
Condition
New
Dimension(L*W*H)
4.1*1.9*2.5
Warranty
One Year
Delivery Time
60 Days After Payment
Mould
One/Two/Three/Five/Six Cavity
Station
Single Station
Application
Plastic Bottle, Jerry Can,Plastic Household Goods
Max.Product Volume
10L
Weight
5 Tons
Transport Package
Wooden Case
Trademark
Sino-tech
Origin
Jiangsu, Zhangjiagang
HS Code
8477301000
Production Capacity
200 Sets/Year

Product Description

10L Lubricant Bottle Blowing Molding Machine/ PP HDPE Plastic Bottle Blow Moulding Machine
Detailed Description
1. Electronic control system: Japanese mitsubishi PLC computer and human interface (Chinese or English) control, color touch operation screen operation, modular temperature control.
All process Settings, changes, retrieval, monitoring, fault diagnosis and other functions are implemented on the touch screen without point contact working principle and components are durable.
2. Hydraulic system: proportional hydraulic control, equipped with imported famous hydraulic valve and oil pump, stable and reliable.
3. Plasticized system: effectively plasticized the mixing screw, ensuring the plasticization and uniformity.
4. Speed-regulating system: change the taut debugging + alloy steel hard tooth reduction gearbox, adjust speed to be stable, energy saving, low voice, durable.
5. The opening and closing modes and the sliding mechanism of the locking die are in linear guide rail with the precision of the mi grade.
The positioning precision is high, easy and energy saving, and is loaded with strong and invariable.
6. Infrared safety electric eye. Automatic extraction of finished products.
Technical Parameter
Max.Product Volume(L) 10
Station Single
Dry cycle (PC/H) 600
Screw Diameter (MM) 70
Screw L/D Ratio (L/D) 25
Screw Drive Power (KW) 22
Screw Heating Power(KW) 6.2
No.Of heating zone(Srew) 3
Output of HDPE(kg/h) 70
Hydraulic pump driving power (KW) 11
Clamping force(KN) 95
Platen distance (MM) 410~800
Max.Size of Mold(W*H)(mm) 480*530
Capacity of Accumulator head (L) 2
Max.Die Diameter(mm) 170
Die heating power(KW) 8.7
No.Of heating zone (ZONE) 3
Blowing pressure(Mpa) 0.8
Air consumption(m³/MIN) 0.6
Cooling water pressure(Mpa) 0.2-0.3
Water consumption 50
Size of machine(L*W*H)(m) 4.1*1.9*2.5
Weight of machine(TON) 5

Detail show
Production workshop
Packing & Shipping

After Sales service:
1. We offer you the free machine operation training happened in China.
2. Offering the free testing and installing of the machine in the buyer factory, but the fee of the visa, the ticket, food and living should be in the buyer's charge.
3. The spare parts of the machine and the auxiliary machine can be supply by us.
4. The guarantee of the machine is one year under the normal operation.
5. We offer the customer the technology for free for all life time.
Please contact us:

Tel: 86-512- 58492269
