CNC Double Column Miling Drilling Tapping Machining Center

Product Description

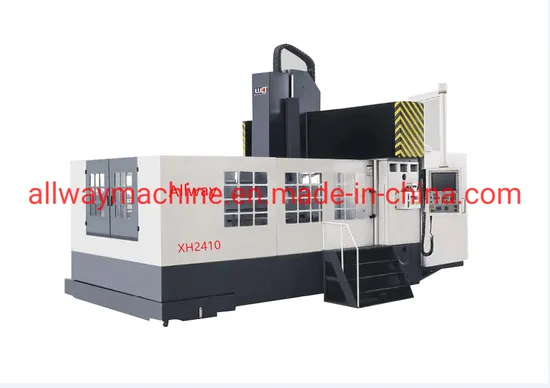

The machine adopts the workbench mobile, beam fixed gantry frame structure, widely used in automotive, aerospace, printing and packaging, textile machinery, metallurgy, petrochemical, locomotive, mold and other large and medium-sized machinery parts processing and mould manufacturing industry, once clamping can meet the requirements of coarse, half finishing and finishing, can finish milling, drilling, tapping, boring, reaming, and other process.
1)Base, table, column, beam, a slide, spindle box and other major components using cast iron HT300, enclosure structure, compact and reasonable symmetric reinforcement structure to ensure the high rigidity and resist bending vibration performance;With resin sand molding and after full of aging treatment, provides the guarantee for the stability of the machine.
2) X, Y direction guideway are all imported Taiwan HIWIN overloaded roller linear guideway,with fast speed, high rigidity, low friction, low noise, low temperature rise change characteristic;X direction is 6 siders double gudieway structure,Y direction adopts stepwise type parallel structure,give consideration the span of both of vertical and horizontal two direction; Z direction is widen the rectangular slide guideway, and the intermediate frequency quenching and precision grinding, sliding guideway surface paste PTFE composite materials and precision lapping, with automatic forced lubrication, improve the accuracy of machine life and rigidity; Product Parameters

ITEM		Unit	XH2014-CX2	XH2416-CX2	XH4030-CX2	XH6030-CX2
worktable	Table width	mm	1200	1600	2200	2200
	Table length	mm	2000	4000	4000	6000
	Max.load of table	kg	5000	10000	15000	22000
	T slots (width/distance/number)		22 x 140x7	22 x 180x9	28 x 200 x 11	28x203x 11
Travel	X axis Travel	mm	2100	4100	4200	6200
	Y axis Travel	mm	1400	2200	3150	3150
	Z axis Travel	mm	800	1000	1000	1000
	W1/W2 travel (side head up-cown)	mm	600	800	850	850
	V1/V2 travel (side head left-right)	mm	300	400	450	450
	Distance between two columns	mm	1400	2100	3000	3000
Spindle	Distance from spindle nose to worKtsble	mm	150-950	200-1200	250-1250	250-1250
	Spindle taper		BT50	BT50	BT50-190	BT50-190
	Spindle motor	kw	15-18.5	15-18.5/22-26	22/26	22/26
	Spindle speed	rpm	6000	6000	6000	6000
Side milling head	Distance from side heed spinde center Iine to worktable	mm	30-630	100-900	100-950	100-950
	Spindle taper of side head		BT40 (short nose)	BT40	BT50	BT53
	Spindle motor of side head	kw	11/15	11/15	11/15	11/15
	Spindle speed of side head	rpm	6000	6000	6000	6000
	Distance between spindle nose of the twc sice heads	mm	700-1300	1300-2100	2100-3000	2100-3000
Feed speed (X/Y/Z axis)		mm/min	1-8000	1-8000	1-8000	1-8030
Rapid feed speed (X/Y/Z axis)		m/min	12/12/10	12/12/10	12/12/10	12/12/10
W/V spindle speed (variable)		mm/min	1-6000	1-6000	1-6000	1-6030
Positioning accuracy (Semi-closed Loop)	Positioning accuracy-X	mm	0.016	0.025	0.025	0.04
	Positioning accuracy-Y	mm	0.015	0.02	0.02	0.02
	Positioning accuracy-Z	mm	0.015	0.02	0.02	0.02
	Positioning accuracy- W	mm	0.015	0.015	0.015	5
	Positioning accuracy-V	mm	0.015	0.015	0.015	0.0*5
Repeatability Positioning accuracy(Semi-closed Loop)	Repeatabfity Positioning accuracy-X	mm	0.012	0.016	0.016	0.025
	Repeatability Positioning accuracy-Y	mm	0.01	0.014	0.014	0.0*4
	Repeatability Positioning accuracy-Z	mm	0.01	0.014	0.014	0.0*4
	Repeatability Positioning accuracy-W	mm	0.012	0.012	0.012	0.0*2
	Repeatability Positioning accuracy-V	mm	0.012	0.012	0.012
	Overall dimension	mm	6200 x 4500 x 4200	10000x5100x4800	10300x6200x5600	15000x6200x5600
	Weight	T	17	34	50	62
