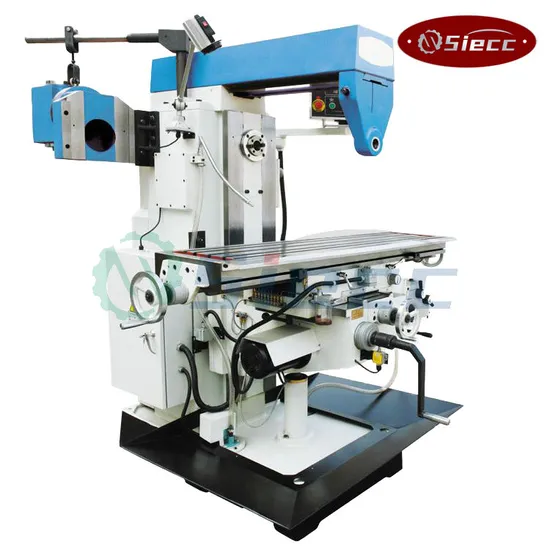

X6132 X6132bh Conventional 4 Axis Horizontal Milling Machine

Product Description

Universal horizontal milling machinery

Item		Units	X6132
Table	Table size	mm	320*1325/1600
	No.of T-slots		3
	Width of T-slots	mm	18
	Max load	kg	500
	Distance between T-slots	mm	70
Travel	Longitudinal travel(manual/auto)	mm	700/680,980/960
	Cross travel(manual/auto)	mm	245/230
	Vertical travel(manual/auto)	mm	320/300
Spindle	Spindle taper		7:24(ISO NO.50)
	Spindle bore diameter	mm	29
	Spindle speed range	r/min	30-1500
	Spindle speed step	steps	18
	Axial mootion	mm	85
	Max.swivel angle of spindle		±45
	Distance from spindle nose and table surface min/max.	mm	215/470
	Distance from centre line of spindle to vertical guideway surface of column	mm	30/350
Feedrate	Cutting feed rate	mm/min	X:23.5-1180,Y:15-786,Z:8-394
	Rapid feed rate	mm/min	X:2300,Y:2300,Z:770
	NO. of feed	mm	18
Motor	Power of spindle motor	kw	7.5
	Power of feed motor	kw	2.2
Others	Overall dimensions(LxWxH)	mm	2294X1170X1665
	Net weight	kg	2850

Nontong Lecroy Machine Tool Manufacture Co., Ltd., specializes in machine tool research and development design, manufacture and sales, with many years of production history of precision machine tool.

As "X53K milling machine professional manufacturer",the company has experienced engineering andtechnical staff and production workers.and more than 12000 square meters of workshop, we inherit and carry foward the traditional manufacturing technology with a large number of high level and precision machining equipment, perfect quality assurance system and complete testing facilities.

We professionally produce X5040(X53K), X5032(X52K) vertical knee type milling machine,X6140(X63W),X6132(X62W) series of unversal milling machine, X6325,X6330,X6332 rocker unversal milling machine etc. and we always devotes to development of new products to meet the various needs of customers!

With business philosophy of "excellent quality,customer first,integrity-oriented".we supply high quality machines to more and more customers,we will spare no efforts to pay you back with excellent quality, competitive price and quick aftersale service for your attention and support!
