Automatic Rubber O Ring Seal Making Machine/Rubber Bumper Vulcanization Press/ Rubber Bumper Making Machine/Hydraulic Rubber Track Press Machine

Product Description

Plate rubber vulcanizing press,rubber O ring vulcanizing press machine, rubber plate vulcanizing press machine, rubber curing press Company Profile
I. Brief company profile
1. We are a factory with more than 10 years manufacturing experiences on rubber machine.
2. Our engineers have about 25 years design experiences on rubber machine.
3. Our machines are manufactured according to CE standard.
4. Exporting countries are more than 125 countries. Such as America, Canada, Mexico, Argentina, Colombia, Ukraine, Russia, Uzbekistan, Germany, India, Indonesia, Malaysia, Australia, Pakistan, etc.
5. There are 15 experienced engineers and 108 skilled workers in our company, guaranteeing delivery on time as stipulated in the contract. At the same time, the company established a long-term cooperative relation with Cosco, MSK, YML, etc., for ensuring the goods arriving port on time.
6. Our company professional manufacture rubber vulcanizing press (frame type,four column type,lab press and so on), rubber mixing mill, batch off cooler, rubber extruder, rubber strip making machine and tire recycling equipment
II. Advantages of the machine
1. Four column structure
2. 3RT (3 stage die sinking)
3. PLC programmable controller
4. Breakdown self check function and display
5. Pressure transducer control system
6. Tubular electric heating element fuse alarm and remind the place of the damaged tubular electric 7. heating element. It is convenient to maintain and change.
III. Technical parameter

Model	200T-B full automatic
structure	Single type four column
Nominal clamping mould force	2000KN
Max working oil pressure	16
Hot plate size	500*500
Hot plate space	400mm
Working layers	1
main cylinder plunger stroke	400
Main cylinder type	Single acting with slave cylinders
Heating mode	electrical heated tube
Hot plate pressure per unit area	8
Open mould type	Up and down-out and in mould-3RT open mould
Motor power	5.5kw
Outline dimension	1170*1950*2230mm
Weight	3200kgs

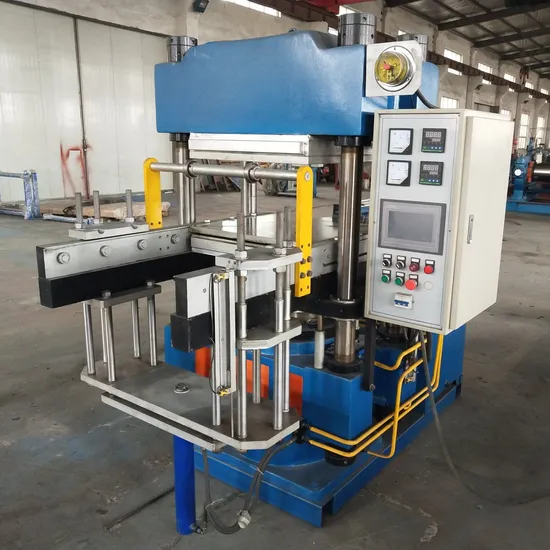

IV. Picture for reference
V. Test Before Delivery
Before leaving factory, this rubber vulcanizing machine needs to pass 24 hours' test running and guarantee no oil leakage and seeping to avoid unnecessary quality problems.
VI. Packaging
Equipment painting completed before delivery, and then wrapped with stretch film, to protect the painting surface, we use wooden packaging outside.The key parts of the machine, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
VII. Our service
1. Test running: The above machines are all passed inspection of 3~5 hours of full load operation before leaving our factory. And we will take the video and send it to you for inspection. You can use it directly thus saving the time of test-run and expense. And we also warmly welcome to our factory to inspect and test running.
2.Warranty: 12 months after installation, if our machines have any problems, please feel free to contact me. We will solve it for you as soon as possible, and give you the best services.
If you interested in our products mentioned above. Kindly let us know by return email. Then I will supply you with further information. Meanwhile, welcome to visit our factory!
Contact person: Alice (Sales Manager)

FAQ:
1. Q: Where is your factory? How can I visit ?
A: Our factory located in Qingdao city.You can fly to QINGDAO LIUTING airport,then we can pick you up to our factory for your visiting.We are looking forward to your visiting.
2. Q: How does your factory control the quality of machines and after sales service?
A: Our machines have passed CE, ISO, SGS certification, with best quality and reasonable price. All our machines have 1 year guarantee, will be provided for a lifetime maintenance.
3. What's your payment term?
A: Common is 30% deposit by T/T, the balance paid against shipping documents
Or L/C at sight.
4. Q: Can you design new product for us?
A: We have a professional development team that can make new products according to your requirements.
5. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.

6. What does your factory do regarding quality control?
We pay much more attention to the quality controlling from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.

7. What's the machine quality guarantee?
we provide one year warrenty for our machines.We choose the world's famous brand of components to keep our machine in perfect working condition.

8. Are you able to provide the installation and commissioning of machines overseas? How long will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.

9. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation, quality, integrity and efficiency. Also we have had much good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.
