Hydraulic Polyurea Spray Machine/Equipment Trunk Bedliners Bed Liner Fd-511

Product Description

Product Description
"Our mission is simple: making homes and businesses as comfortable, energy-efficient, and safe as possible. If you want to save money, stay warmer in the winter and cooler in the summer, or create a safer indoor environment, we have the products, equipment, and trained experts who can make it happen.
Hydraulic Pu Foam / Polyurea Spray Machine FD-511 is a hydraulic driven polyurethane polyurea spray machine.
It has the characteristics high working pressure, stable pressure and large spray output.
It is especially suitable for large-scale spraying construction.
Product Parameters

Project	FD-511
Data ratio of raw materials	1: 1 (fixed)
Raw material viscosity range	200-1000CPS (at working temperature)
Max Working pressure	35MPa (350 bar)
Maximum Fluid Temperature	88 ° C (190 ° F)
Maximum output	24kg/min (42 lb/min)
Gun Type	Spray/Injecting
Heating hose power	1000W / 15m
Total power	21000W
Voltage	230V 1-ph / 3-phs 380V/400V 3-ph
Machine size	870mm * 700mm * 1150mm
Gross weight	350KGS
Net weight	300KGS

Standard configurations
Slef-cleaning spray gun 1 unit Transfer pump 2 unit Heated hoses 15 meters
Packaging & Shipping
Export fumigation-free wooden box packaging, sea and air transport more robust and reliable.

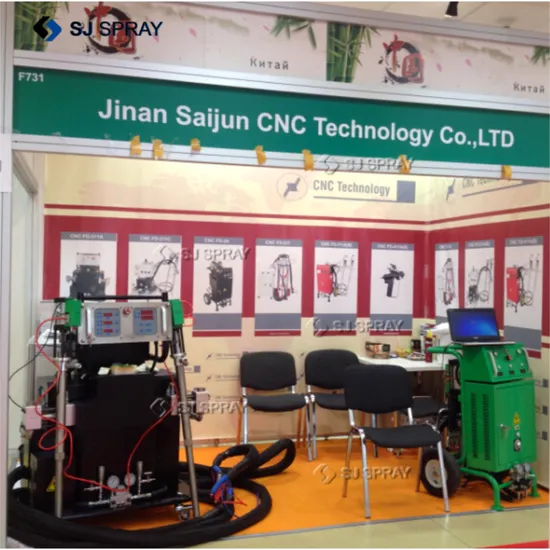

Exhibition
For more than ten years since its establishment, it has participated in dozens of foreign exhibitions and has very stable partners all over the world.
Certifications
CE certification, rich export experience
