DN300 DN500 DN600 Stainless Steel Bellows Expansion Joints and Compensators Forming Making Machine

Product Description

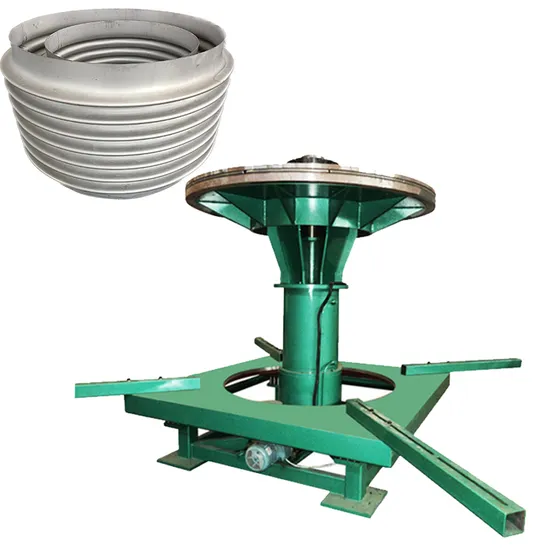

DN300 DN500 DN600 Stainless Steel Bellows Expansion Joints And Compensators Forming Making Machine
Product Description
The mechanical metal bellows forming machine is also called Automated punch former, it's a good machine for producing metal bellows expansion joints from single or multi-layer tubes, a wide production working range diameter from DN80mm to DN3000mm.
*Size range: DN80-3000mm
*Thickness of single layer: <3mm
*Thickness of multi-layer: <6mm
*Pitch height: Max. 90mm
*Type of the bellows: annular bellows
*Expanding type: Mechanical

Technical Parameters

Machine Model	DN100-1200	DN800-3000	DN2000-6000
Thickness	6layer*1mm	8layer*1mm	8layer*1mm
Expanding Time	<20S	<30S	<40S
Corrugation Height	65mm	85mm	160mm
Tube Length	1500mm	1500mm	1500mm
Total Power	8.5KW	13KW	30KW
Dimension	4500*1500*2516mm	2200*2200*4150mm	2700*2500*4680mm
Weight	4.2Ton	5.8Ton	8.5Ton

Our Advantages
• Adopting advanced bellow-making technology, Siemens controller-controlled, fully automated production.
• Hydraulically powered, fast forming speed, low noise.
• The material of forming tools are high strong die steel with long service life
• Many safety precautions to ensure the safety of personnel and equipment in the production process.
• This machine can be customized according to the customer's parameters.
Quality Inspection
Related Machine
After forming with a mechanical mandrel expanding machine, or a mechanical rolling forming machine, the bellow shape or pitch distance may not be so perfect, the re-rolling machine is used for re-roll the bellow to get the perfect shape and closing pitch distance.
1. Max convolutions is 12, and the length of the bellows is less than 1200mm.
2. No. of re-roller:
No. of driving re-roller=no. of convolution-1
No. of driven re-roller=no. of convolutions
3. After re-rolling, the bellow shape will be better and more accurate and constant/equal.
4. If the customer wants to re-roll the bellow to a specified pitch distance, the thickness of the re-roller and axial thickness of the positioning ring will be designed accordingly.
