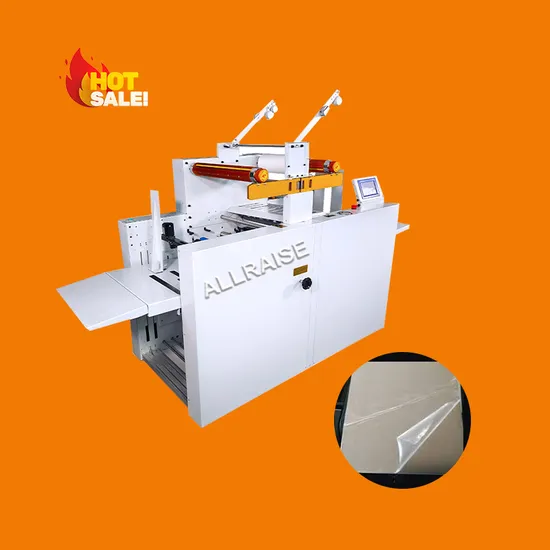

Factory Price Electric 540mm Width Paper BOPP Film Lamination Machine Automatic Hydraulic Feeding Laminator Laminating Machine
Basic Info.
Model NO.
OR-540B
Classification
Pre-Coating Laminating Machine
Application
Particle Board, Fiberboard, Plywood, Aluminium Plate, Packaging Paper, Film Material, Color Printing, Soft Board
Driven Type
Electric
Automatic Grade
Automatic
Membrane Material
PVC Film
Plastic Film Mulching Modes
Hot Laminating
Performance
Lamination
Work Mode
Single Side
Heating Mode
Steel Roll
Transport Package
Wood Case
Trademark
Allraise
Origin
China
Product Description
Product DescriptionArticles storage function:The machine for the split mainmachine add bottom cabinet,easy to place articles.Machineplacement function:there is a universal wheel at thebottom,easy to move.Operation function:Capacitive touchscreen,easy to understand.
Section function:with breaking function,no need to set thelength of paperautomatic section and small oise.Anti-rollfunction:in the process of laminating,very simple to adjustthe paper crimp.
Film cutting function:equipped with fim cuting knife,can beadjusted according to the needs ofguests when the filmwidth,Paper receiving function:The rear is equipped withlifting paper receiving platform,and can collect paperheightreach to 520mm. Product Parameters
| Machine name | Factory Price Paper BOPP Film Lamination Machine Automatic Feeding Laminating Machine |
| Model | OR-540B |
| Work mode | Single side |
| Heating mode | Steel roll |
| Roll diameter | 176mm |
| Coating temperature | 60-120ºC |
| Film thickness | 157-400g |
| Membrane core diameter | 3 in |
| Heating time | 5-10min |
| Film coveringspeed | 0-15M/min |
| Max film width | 540mm |
| Display mode | Capacitive touch screen |
| Control mode | Electronic temperature control |
| Pressurization mode | Hydraulic pressure |
| Paper feed mode | Automatic feed |
| Automatic paper collection function | Automatic collect |
| Automatic tension function | Have |
| Dashed line function | Perforating knife |
| Crimp prevention function | Gravity stretch anti-crimp design |
| Trimming function | Automatic trimming |
| Electric current | 12A |
| Voltage | 220-240V |
| HZ | 50-60HZ |
| Humidity | 20%-80% |
| Net weight | Laminator;327kg |
| Gross weight | Laminator;348kg |
| Packing dimension | 1250*950*1050mm |
