Multi-Function 1GMP-100g Custom Three Point Suspension Agriculture Ridging Fertilizer Laminating Machine

Product Description

Product Description
Ridge Laminating Machine

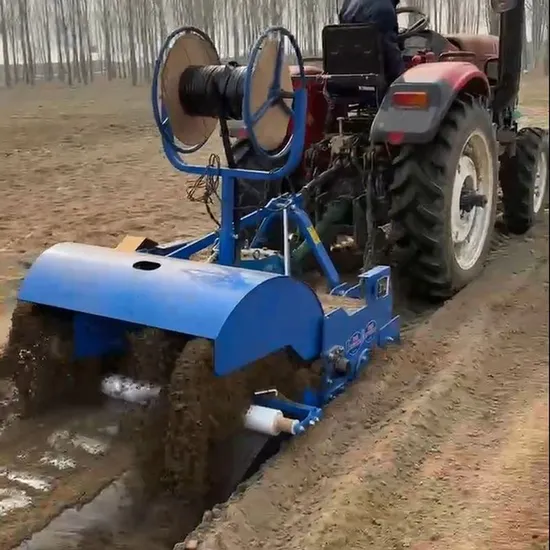

Ridge laminating machine is a kind of mechanical equipment widely used in agricultural production. It can efficiently complete ridge-forming and film-covering operations, greatly improving the operation efficiency of farmland. This machine is usually composed of a rotary tillage and soil-breaking part, a ridge-forming and shaping part, and a film-covering and soil-pressing part. The rotary tillage and soil-breaking part turns up and breaks the soil through a disc plow and a rotary tillage blade shaft, the ridge-forming part adjusts the height and compaction of the ridge through a drag plate and a pressure roller, and the film-covering and soil-pressing part is responsible for unfolding the ground film and fixing it on the ridge surface.
The working principle of the ridging and film-covering machine is to use the power output shaft (PTO) of the tractor to drive the machine, and complete the rotary tillage, ridging and film-covering operations through the cooperation of the gearbox and the blade shaft.
This machine is widely used in modern agriculture. It can not only reduce labor intensity but also realize the joint operation of multiple functions, such as fertilization, sowing, laying drip irrigation belts, etc.
Product Parameters

1GMP-100G PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	10	Fertilization Box Volume	0.11 Cubic Meters
2	Working Size (length*width*height)	1500*1210*1770	11	Ridge Formation/Number Of Rows	1 Line
3	Transport dimensions (length*width*height)	1280*1210*1320	12	Ridge Width	≈30mm
4	Overall Weight	375KG	13	Ridge Bottom Width	≈70mm
5	Working Width	1000	14	Ridge Height	≥300mm
6	Operation Efficiency	Estimated 0.14 hectares per hour	15	Applicable Film Width	≥1000mm
7	Supporting Power/Machine Horsepower	≥50(four wheel drive)	16	Rotary Blade Model	265
8	Matched To The Power Output Shaft Speed	540/720	17	Number Of Blades	265 model 10 pairs
9	Matching Hanging Width	610mm	18	Rotary Blade Arrangement	Opposite spiral instal lation
Note:The values in the specification table are theoretical values,please refer to actual values.

1GMP-110 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	10	Fertilization Box Volume	0.12 Cubic Meters
2	Working Size (length*width*height)	1500*1310*1710	11	Ridge Formation/ Number Of Rows	1 Line
3	Transport dimensions (length*width*height)	1280*1310*1270	12	Ridge Width	≈400mm
4	Overall Weight	390KG	13	Ridge Bottom Width	≈800mm
5	Working Width	1100	14	Ridge Height	≥260mm
6	Operation Efficiency	Estimated 0.14 hectares per hour	15	Applicable Film Width	≥1100mm
7	Supporting Power/ Machine Horsepower	≥50(four wheel drive)	16	Rotary Blade Model	245and225
8	Matched To The Power Output Shaft Speed	540/720	17	Number Of Blades	245 model 10 pairs 225 model2 pairs
9	Matching Hanging Width	610mm	18	Rotary Blade Arrangement	Opposite spiral installation
Note:The values in the specification table are theoretical values,please refer to actual values.

1GMP-110G PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	10	Fertilization Box Volume	0.12Cubic Meters
2	Working Size (length*width*height)	1500*1310*1770	11	Ridge Formation/ Number Of Rows	1 Line
3	Transport dimensions (length*width*height)	1280*1310*1320	12	Ridge Width	≈400mm
4	Overall Weight	390KG	13	Ridge Bottom Width	≈800mm
5	Working Width	1100	14	Ridge Height	≥300mm
6	Operation Efficiency	Estimated 0.14 hectares per hour	15	Applicable Film Width	≥1100mm
7	Supporting Power/ Machine Horsepower	>50(four wheel drive)	16	Rotary Blade Model	265
8	Matched To The Power Output Shaft Speed	540/720	17	Number Of Blades	265 model 10 pairs
9	Matching Hanging Width	610mm	18	Rotary Blade Arrangement	Opposite spiral installation
Note:The values in the specification table are theoretical values,please refer to actual values.

1GMP-110Y PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	10	Fertilization Box Volume	0.12Cubic Meters
2	Working Size (length*width*height)	1500*1310*1710	11	Ridge Formation/ Number Of Rows	1 Line
3	Transport dimensions (length*width*height)	1280*1310*1270	12	Ridge Width	≈400mm
4	Overall Weight	KG	13	Ridge Bottom Width	≈800mm
5	Working Width	1100	14	Ridge Height	≥260mm
6	Operation Efficiency	Estimated 0.14 hectares per hour	15	Applicable Film Width	≥1100mm
7	Supporting Power/ Machine Horsepower	≥50(four wheel drive)	16	Rotary Blade Model	245and225
8	Matched To The Power Output Shaft Speed	540/720	17	Number Of Blades	245 model 10 pairs 225 model 2 pairs
9	Matching Hanging Width	610mm	18	Rotary Blade Arrangement	Opposite spiral installation
Note:The values in the specification table are theoretical values,please refer to actual values.

1GMP-120 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	10	Fertilization Box Volume	0.13 Cubic Meters
2	Working Size length*width*height)	1500*1410*1710	11	Ridge Formation/ Number Of Rows	1 Line
3	Transport dimensions (length*width*height)	1280*1410*1270	12	Ridge Width	≈500mm
4	Overall Weight	410KG	13	Ridge Bottom Width	≈900mm
5	Working Width	1200	14	Ridge Height	≥260mm
6	Operation Efficiency	Estimated 0.14 hectares per hour	15	Applicable Film Width	≥1200mm
7	Supporting Power/Machine Horsepower	≥50(four wheel drive)	16	Rotary Blade Model	245and225
8	Matched To The Power Output Shaft Speed	540/720	17	Number Of Blades	245model 12 pairs 225model 2 pairs
9	Matching Hanging Width	610mm	18	Rotary Blade Arrangement	Opposite spiral installation
Note:The values in the specification table are theoretical values,please refer to actual values.

1GMP-180 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	11	Ridge Formation/Number Of Rows	2 Line
2	Working Size (length*width*height)	1700*1810*1800	12	Ridge Spacing/ Row Spacing	850mm
3	Transport dimensions (length*width*height)	1700*1810*1030	13	Ridge Width	≈300mm
4	Overall Weight	760KG	14	Ridge Bottom Width	≈700mm
5	Working Width	1800	15	Ridge Height	≥260mm
6	Operation Efficiency	Estimated 0.27 hectares per hour	16	Applicable Film Width	≥1000mm
7	Supporting Power/Machine Horsepower	≥70(four wheel drive)	17	Rotary Blade Model	245
8	Matched To The Power Output Shaft Speed	540/720	18	Number Of Blades	245 model 20 pairs
9	Matching Hanging Width	660	19	Rotary Blade Arrangement	Opposite spiral installation
10	Fertilization Box Volume	0.15 Cubic Meters	20
Note:The values in the specfication table are theoretical values,please refer to actual values.

Detailed Photos
IMPROVE OPERATION EFFICIENCY
The ridging and film covering machine can complete ridging and film covering at the same time, reducing the time and labor input of traditional manual or step-by-step mechanical operations, greatly improving the efficiency of agricultural production, and is especially suitable for operations on large areas of farmland.
IMPROVE SOIL CONDITIONS
During the ridging process, the machine can perform rotary tillage and soil crushing to make the soil looser, and increase the air permeability and water permeability of the soil, which is conducive to the growth and development of crop roots and provides a better growth environment for crops.
SAVE RESOURCES AND PROTECT THE ENVIRONMENT
The film-covering operation can effectively reduce the evaporation of soil moisture and improve the efficiency of water use, especially in arid areas, which can significantly save irrigation water. In addition, film covering can also reduce weed growth, reduce dependence on pesticides and fertilizers, and thus reduce agricultural non-point source pollution.
MULTIFUNCTIONAL INTEGRATION
The modern ridging and film covering machine can not only complete ridging and film covering, but also be equipped with multiple functions such as fertilization, sowing, and laying drip irrigation belts as needed, so as to realize the joint operation of multiple operations, reduce the number of mechanical entry times, and reduce the compaction of the soil.
STRONG ADAPTABILITY
The ridging and film covering machine is suitable for a variety of terrains and soil types, and can effectively complete operations in both plains and hilly areas. At the same time, the machine's parameters can be flexibly adjusted according to different crops and agronomic requirements, and it has strong adaptability.
