Electric Radial Gear Head Metal Drilling Machine
| US$1,968.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5040
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
Normal Precision
Certification
GS, CE
Material
High Speed Steel
Use
Metal Drilling
Transport Package
Plywood, or Wood Case
Specification
CE/GS
Trademark
Wei hao
Origin
Shanghai
HS Code
845911000
Production Capacity
1000 Sets/Month
Product Description
Min. Order Quantity: 10 Set/SetsSupply Ability: 300 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T
Quick Details
Condition: New
CNC or Not: Normal
Drilling Speed: 50-1450rpm
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: ZS5040
Voltage: 380V
Power(W): 1500W
Dimension(L*W*H): 2270X690X1100mm
Weight: 465kgs
Certification: CE After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: 2270X690X1100mm 465/615kg
Delivery Detail: 30-45days
Specifications
2 speed strong power motor
Automatic tools ejectors
2 steps power feed 0.1-0.2mm/rev
Drilling, tapping

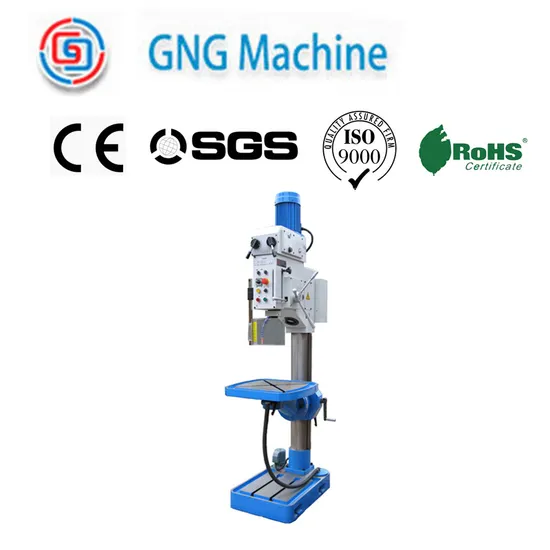

Electric gear head drilling machine model Z5040
Specifications: Z5040(machinery power feed)/Z5040E(electronic power feed)
1. Max. Drilling capacity: 40mm
2. Threading in steel& cast iron: M20&M24
3. Spindle travel: 180mm
4. Spindle taper: MT#4
5. Spindle power feed: 2steps/0.1-0.2mm/rev
6. Spindle speed: 50-1450rpm
7. Width of T-slot: 18mm
8. Max. Distance from spindle axis to surface of column: 350mm
9. Max. Distance from spindle end to surface of table: 770mm
10. Max. Distance from spindle end to surface of bace: 1210mm
11. Table size: 560X560mm
12. Base size: 730X500mm
13. Motor power: 0.75/1.5KW
14. NW/GW: 465/615kg
15. Packing size: 2270X690X1100mm
Feature:
2 speed strong power motor
Automatic tools ejectors
2 steps power feed 0.1-0.2mm/rev
Drilling, tapping
| ITEM | Z5040 |
| Max.drilling capacity | 40mm |
| Spindle taper | M.T.4 |
| Spindle travel | 130mm |
| Step of spindle speed | 6 |
| Range of spindle speed 50Hz | 80-1250 r.p.m |
| 60Hz | 95-1500 r.p.m |
| Min.distance from spindle axis to column | 283mm |
| Max.distance from spindle nose to worktable | 725mm |
| Max.distance from spindle nose to stand table | 1125mm |
| Max.travel of headstock | 250mm |
| Swivel angle of headstock (horizontal/perpendicular) | 360°/±90° |
| Max.travel of worktable bracket | 600mm |
| Worktable size of avaliablity | 380×300mm |
| Swivel angle of table horizontally | 360° |
| Table leaned | ±45° |
| Size of stand worktable of avaliability | 417×416mm |
| Motor Power | 1.1KW(1.5HP) |
| speed of motor | 1400 r.p.m |
| Net weight/Gross weight | 432kg/482kg |
| Packing size | 1850×750×1000mm |
