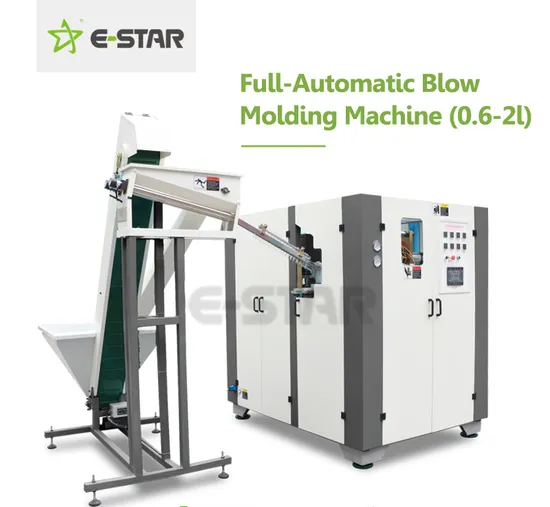

Automatic 2 Cavity High Speed Stretch Pet Blow Machine Equipment 200ml 350ml 500ml 1000ml 2L

Product Description

Product Description
E-star company adopts Germany advanced technology to develop the E-BL series PET high speed energy-saving full automatic bottle blowing machine. Using servo motor for loading, stepping,clamping and driving. It has the advantage of accurate positioning,low noise, power saving and fast speed. From 2 cavity to 8 cavity, can blow max.2000mL bottle. It's suitable for producing PET plastic containers and bottles in all shapes. Like the carbonated bottle, mineral water, pesticide bottle ,oil bottle, Beverage bottle, medicine bottle etc.
1.The whole machine is designed according to the linear high-speed machine, and the equipment is lengthened to ensure high quality product and high output, which can be suitable for rapid prototyping of various bottles.
2.Preform transfer system:
2.1 Adopting the Aluminum Connecting Rods structure
Advantages: Light weight, wear resistant. When the machine is running and running for many years,the rods length is always fixed. And the center distance won't be changed.( if chain type, long-term running, will elongated the center distance )
2.2 Easy for changing preforms holders: Just pull it out, and push the one you need, that's it.
3.Mold Clamping Unit:
3.1 Using the hyperbolic arm and high pressure to clamp make sure the clamping machine more stable and high speed operation,strong clamping force.
3.2 Using servo motor for clamping, make sure the machine more stable and high speed operation,strong clamping force, then the bottle joint line is very slim and beautiful.
3.3 Using the oil storage oil circuit distributor system, so that the lubricating points of the clamping equipment can get uniform lubricating
3.4 The servo stretching system and servo clamping system have the advantages of uniform stretching speed,strong tensile strength and good product molding.
3.5 It will only take 5 minutes to replace the bottle mold.Because it has positioning function. Just push the blowing mold in, tighten the screw, that's all.
4.Efficiency constant temperature oven
4.1 Each layer of lamp are separately controlled,with assistant ruler on machine;
4.2 Heater flexibility: The height and width of reflector and lamps in heating zone can be adjusted .Which can fit for different kinds of pet preform heating ,meanwhile. Automatic vent temperature device is equipped to keep the oven temperature steady.
4.3 Preform self-rotation system,ensure every side of every preforms are heated evenly,which ensure quality of blown bottle.
4.4 Neck cooling in oven: preform necks are cooled by recycling water, which avoid neck deformation.
4.5 Ruby infrared oven is lengthened
Principle: Using lower power and provide the preforms sufficient baking time,which ensured the rapid formation of bottles, thus increasing the output.
And meanwhile can reduce the environment impact on the oven, more stable,more easier for your worker to operate it.
4.6 Using the most advanced high frequency ruby infrared lamps,increasing heating efficiency 30%-50%. Product Parameters

TYPE	ITEM	U N I T	E-BL2000-2S
Clamping	Clamping force	KN	200
	Clamping stroke	mm	140
	Stretching stroke	mm	450
	Bottom stroke	mm	30
	Cavity pitch	mm	115
	Number of cavity	cavities	2
Container	Theoretical output	BPH	2000-2500
	Max container volume	L	2
	Max.neck outer diameter	mm	18-38
	Max. container diameter	mm	105
	Max. container height	mm	330
Electrical system	Number of Lamp	pcs	16
	Max. heating power	KW	30
	Installed power	KW	32
	Actual electricity consuming	KW	15
Air system	Operating pressure	kg/cm2	7
	Low pressure air consumption	Ltr/min	1200
	Blowing pressure	kg/cm2	≤35
	High pressure air consumption	Ltr/min	2000-2500
Machine	Machine size	m	2.7×1.7×2
	Machine weight	T	2.1
Remark	All data standard indication for 0.6L,16g water bottle. The actual output depends on the preform quality and bottle shapes. Specifications are subject to change without notice.

Company Profile
Taizhou Easy Star Machinery Co.,Ltd. is a professional manufacturer of blow molding machines,preforms and plastic molds in China. We can provide a full range of services, whether it is molds, production machines, complete production lines, E-star can give you the best solution.
E-star's main products are various types of blowing machines. Plastic molds and other series of products. The products have the advantages of high degree of automation and stable performance. And are well received by domestic and foreign customers. Among them. The full-electric blow molding machine has reached the international leading level, and the products are exported to Europe, America, the Middle East, Southeast Asia and other places. Even in harsh climates(cold or tropical),E-star blow molding machines can operate stably. We have pre-sales and after-sales service teams, so your machine can get the best guarantee.
With more than 20 years of development experience and a highly fexible production development team, we can discuss and customize requirements for each case to create a financial tool that meets your needs. Whether it is used in Beverages,Water, Edible oil,Daily necessities, Cosmetics,etc.,
E-star's blow molding machines can help you complete the production of PET bottles of various capacities.
FAQ
Q:Where is your factory located?
A:Our factory,near Shanghai, located in Taizhou,China
Q:What is your trade term?
A:Normally FOB NINGBO, if customer country requires, also can accept L/C at sight.
Q:What is your payment term?
A:30% down payment against order confirmation, 70% balance payment prior shipment.
Q:Have blow machine 100% assembled well in stock?
A:No. All blow machine will be assembly produced according to your order.
Q:What is your delivery time?
A:Usually in 45-60days, depends on your projects.
Q:What about installing in customer factory?
A:After machine arrived at your factory, please prepare water, electric,air and preform, then we will arrange engineer to install machine and train your workers, the longest time to free install shall be in one week, you should afford engineer air tickets, food, hotel,transport.
Q:Guarantee time?
A:One and a half year guarantee, not man-made.
