Basic Info.
Certification
CE, GS, ISO9001
Control Type
Ipc Computer Controlling System
Automatic Grade
Automatic
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Control System
Ipc Computer Controlling System
Material for Puncher
SKD-11
Material for Cutter
SKD-11
Hydraulic Motor Power
5.5kw
Material Strip Thickness
0.6-1.2mm
Specification
2850*820*1480mm
Origin
Fujian, China(Mianland)
Production Capacity
20stes/Month
Product Description
Producing Process Flow
Technical Parameters
1) Size
| C89-JC
|
2) Dimension
| 2850*820*1480mm
|
3) Main Servo Motor Power
| 5.5KW
|
4) Hydraulic Motor
| 5.5kw
|
5) Forming Steps
| 7Steps
|
6) Forming Speed
| 2-3tons/8hours
|
7)Voltage
| 380V/50HZ/3PH
|
8) Effective Width
| 89mm
|
9) Control System
| IPC Computer Controlling System
|
Profile Dimensions
Profile Model | C Section(mm) | Thickness |
Web | Flange | Lip |
C89 | 89 | 38 | 9 | 0.6-1.2mm |
Real Customer Feedback

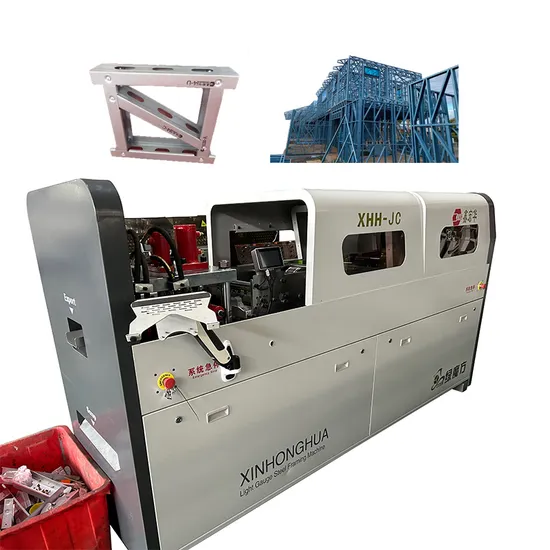

Machine Picture
Machine Components
No. | Items | Quantity |
1 | Steel Strip Uncoiler | 1 |
2 | Roll Former Machine | 1 |
3 | Hydraulic Puncher/Cutter | 6 |
4 | Hydraulic Station | 1 |
5 | Controlling System | 1 |
6 | Label Printer | 1 |
7 | Layout Table | 1 |
8 | Design Software | 1 |
9 | Tool | |
10 | Wearing parts:6006bearing 2 pcs,6000 bearing 2 pcs ,6002 bearing 2 pcs ,628/8 bearing 5 pcs ,61901 bearing 5 pcs ,Chain 1.5m, Chain connector 5pcs,DSG-01-2A3 -DC24V 1 pcs | |
11 | User Manual 1 copy | |
Package
The main body of the machine is bare and wrapped in a plastic film (to prevent dust and corrosion), and it is loaded into the container and steadily fastened in the container in a suitable manner with steel ropes and locks, being suitable for long-distance transportation.
Our factory
XIAMEN XINHONGHUA MACHINERY CO. LTD.(FUJIAN XINHONGHUA MACHINERY CO. LTD) was founded in 2004.as the earlier company which engaged in the manufacture of cold roll forming machines,after the reform and innovation of more than 19 years,and on basis of manufacture of modern management concepts,strong technology,advanced production technology,perfect service system,we have been currently in the domestic leading position,and as good competitor among the same industry of world. Our company is located in the beautiful scenery,nice island of Xiamen.And have variety of products with stable performance,Always pay attention to improve the existing products and research and develop the new products.We have nearly 100 kinds of professional and technical personnel,with its strong ability of product design and development,to ensure a high level design of our product.For our products with light structure, reasonable design and updating styles,so we become well-know in the steel structure industry.
