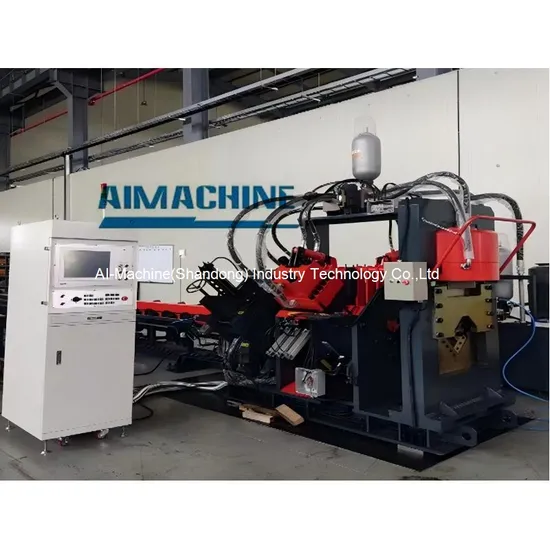

Factory Directly Sale Steel CNC Angle Punching Machine

Factory Directly Sale Steel CNC Angle Punching Machine

US$45,000.00-60,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
APM
Process Usage
Flat and Angle Bar Punching Stamping Cutting, Punching&Cutting
Control Method
Closed-Loop Control, CNC Control
Numerical Control
CNC/MNC, CNC/Mnc
Processing Precision
0.02~0.03(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001, CE, ISO 9001
Condition
New, New
After-Sales Service
Yes
Min.Angle Size
100mm
Max.Angle Size
200mm
Punching Force
1100kN
Cutting Force
4500kN
Transport Package
Pallet
Trademark
AI-MACHINE
Origin
China
Production Capacity
5sets/Year

Product Description

Product Description
a. High speed feeding carriage with pincher system for fast and accurate angle feeding through the working units. b. A sensor positioned on the in-feeding rollerway and can exactly detect the bar length and position c. Special system with V-shaped supports for the automatic loading of the angles onto the infeed idle rolls conveyor.
d.The shearing unit is composed of a frame-type body, a shearing cylinder, an upper knife mechanism, and a lower knife mechanism. The lower knife mechanism can adjust the gap according to the thickness of the angle steel to ensure the cutting quality. e.consists of oil tank, high pressure and low pressure pump group, cooler, main valve group and other control valve groups. It is used to provide working power to each oil cylinder of the machine.

Product Parameters
Model CAP1010 CAP1412
Angle size(mm) L40×40×3~L100×100×10 L40×40×3~L140×140×12
Max. punching (mm) Φ26; Φ22×50;(Q235)
Punching force(kN) 600 950
Marking force(kN) 700 1030
Shearing force(kN) 1200 1800
Max. length of blank(m) 12
Max. length of finished(m) 10
Qty. of punching head 3(2 round+1 oval)
Qty. of character group 4
Character side (mm) 14×10×19 By customers request
CNC axes(piece) 3
Shearing mode Single blade cutting

Model CAP0708 CAP2020 CAPS2020
Angle size(mm) L40×40×3~L70×70×8 L63×63×4~L200×200×20
Max. hole size (mm) Φ26 Φ26; Φ22×50;(Q235)
Punching force(kN) 350 1000 1100
Marking force(kN) 630 800 1030
Shearing force(kN) 750 1800 4500
Max. length of blank(m) 12 14
Max. length of finished(m) 10 10
Punching head per side 2 3(2 round+1 oval)
Qty. of character group 4 4
Character side (mm) 14×10×19 14×10×19
CNC axes(piece) 3 3
Shearing mode Single blade Dual blade Single blade

Company Profile
AI-Machine(Shandong) Industry Technology Co.,Ltd is a high-tech company known for its advanced technology and perfect after-sales service. The company is mainly engaged in CNC Machines for angle steel tower, CNC Machines for steel structure ,CNC metal coil processing complete sets of equipment, like circle blanking line, cross-shear line, slitting line for hot-rolled and cold-rolled series plate. Design and manufacture of other non-standard equipment; design and manufacture of hydraulic and electric control systems; design and manufacture of special hydraulic machinery. We have been engaged in design and development for many years and have a technical team with rich manufacturing experience, and have advanced production equipment as the backing. We have a complete after-sales service network, which can provide you with full support from pre-sales to after-sales, so that you can get the most satisfactory equipment, to ensure that you solve all the problems you encounter in the most convenient and timely manner during use, and get our thoughtful services. Create your future with our technology and services.
FAQ
1. The delivery time? For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C; For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.2. After-sale service? 1) We can send you free components if machines are in warranty period; 2) 24 hours service on line; 3) We can assign our engineers to serve you if you want.3. Installation and Training? Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.4. Model choose? Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
