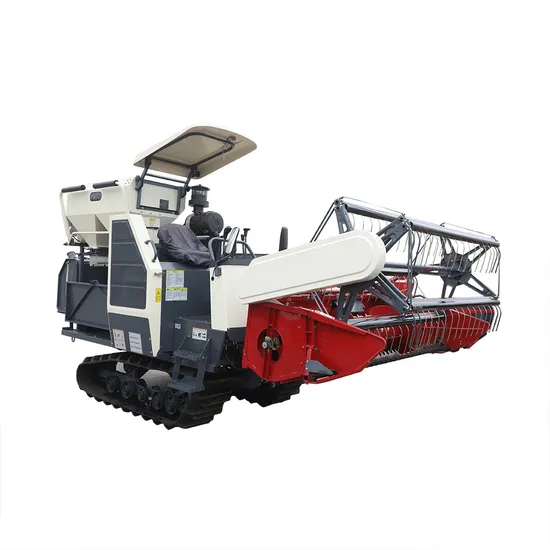

Combine Harvester of Small Mini Type for Rice Wheat Farm Machinery
| US$14,500.00-16,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
4LZ-4.0E
Harvest method
Picking
Drive Type
Vee belt
Transmission
Hard Shaft
Portable Harvester Type
Self-Propelled Rubber Track Full Feed
Certification
CE
Color
Red and White
Condition
New
Application Field
Agriculture
Trademark
WORLD
Origin
China
HS Code
84335100
Production Capacity
400000
Product Description
Feature:1. Turbo engine power 88hp and Gear Box ZKB85 and HST 45cc are used for higher work efficiency.
2. Fuel tank capacity 130L can meet the whole day's work.
3. All direction grain discharging pipe brings convenience.
4. Small grain Tank 0.35m3 can make sure of high unloading efficiency.
5. Rubber Track 500*90*51 and min ground clearance 32cm can make machines work faster in deep mud field.
6. New spring reel is optional.
Diameters as below:
| Model | 4LZ-4.0E | |
| Type | Self-propelled full feeding | |
| Dimension (Operation) | Length(mm) | 4960 |
| Width(mm) | 2890 | |
| Height(mm) | 2700 | |
| Weight(kg) | 2800 | |
| Engine | Type | In-line, Water cool, Four-stroke, Direct Injection |
| Power(HP) | 88 | |
| RPM(r/min) | 2650 | |
| Fuel tank(L) | 130 | |
| Gear Box Model | Hydraulic Gear Box ZKB85 | |
| HST | 45CC | |
| Walking Part | Track(mm) | 500*90*51 |
| Track Gauge(mm) | 1150 | |
| Ground Clearance(mm) | 320 | |
| Harvesting | Cutting Width(mm) | 2000/2100 |
| Feeding Capacity (kg/s) | 4 | |
| Cutting Bar Lift | Hydraulic Control | |
| Threshing | Type | Axial Flow Type with Beat Bars |
| Threshing Cylinder (mm) | 620*2000 | |
| Cleaning Type | Vibrating Sieves+ Centrifugal Fan | |
| Discharging | Small Grain Tank (0.35m3) | Manual |
| Work efficiency | (ha./h) | 0.37-0.66 |
| Crops | Rice, Wheat, Soybean,Rapeseed | |
