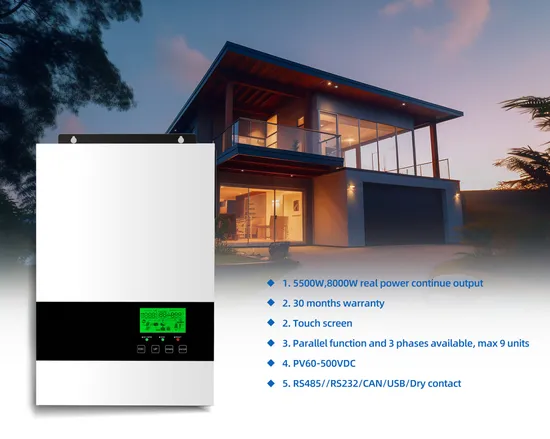

48V 5500W 500V PV Input Hybrid Solar Inverter WiFi and Parallel Supported

Product Description

Built in 100A MPPT Charge Controller 48V 5500W 500V PV Input Hybrid Solar Inverter WiFi and Parallel Supported
Features:
(1) 5.5KW 48V Solar Hybrid Inverter, built-in 100A MPPT charger. Configurable battery charging - current/voltage based on applications. Programmable multiple operation modes: on-grid/off-grid & UPS
(2) Solar energy will supply power to the load as priority, and the excess power will charge the battery. When the solar panel power is insufficient, AC bypass will supplement(In times of high electricity costs, you can reduce the battery AC charging stop voltage to avoid charging the battery at peak utility power)
(3) Smart settable 3-stage charging, Solar energy is the only charging source(Peak power, when the electricity bill is high.Set utilities not to charge.);Solar energy and utility will charge battery(Solar and battery energy storage supplies power to loads during peak hours. And when the electricity bill is cheap, Use utility Timed charging to the battery.);Use utility Timed charging to the battery (valley electricity, when electricity is cheap).
(4) Overload/over-temperatureort-circuit protection.
(5) UPS mode, solar panel or battery power. You have the flexibility to set the battery discharge voltage depth. Ensure that there is enough power to power critical loads in the event of a power outage.
Technical specifications:

Model		PVM 3500-24	PVM 5500-48
AC Input	Nominal Power	3500VA/3500W	5500VA/5500W
	Input Voltage Waveform	sinusoidal (utility or generator)
	Nominal input Voltage	230V
	Low Line Disconnect	170V-280V(For personal computer) 90V-280V(For home appliances)
	Frequency	50Hz/60Hz(Auto sensing)
AC Output	AC Voltage Regulation(Batter mode)	230V±5%
	Surge Power	7000VA	11000VA
	Efficiency(Peak)	90%-93%
	Transfer Time	10ms (For Personal Computers) 20ms (For Home Appliances)
	Wave form	Pure sine wave
Battery	Battery voltage	24V	48V
	Floating charge voltage	27V	54V
	Over charge Protection	33V	63V
Solar charger&AC Charger	Max.PV array open circuit voltage	500VDC	500VDC
	Max.PV array power	4000W	5500W
	MPPT operating voltage range	120-450V	120-450V
	Max solar charge current	80A	80A
	Max AC charge current	60A	60A
	Max charge current	80A	80A
Physical	Dimension(L*W*H)	425*330*117mm
	Net wight(kg)	9.50	10.60
	Communication interface	USB/RS232/RS485/Dry contact
Environment	Operating Temperature Range	-10ºC~50ºC
	Storage Temperature	-15ºC~60ºC
	Operation humidity	5% to 95% (non-condensing)

Company Profile

Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) founded in 2007. Our company is a leading manufacturer for inverter and ups of ISO9001 approved, which is a key hi-tech enterprise in state "Torch Plan," integrating science, industry, trade, and investment into a whole. ZLPOWER factory registered capital of RMB 50million, covering three floor area of 10000sq.m, and owning assets of RMB 300 million. And our products had passed Thayer certification, CE certification, UL certification, ETL certification, CCC certification. OEM and ODM are acceptable. One-stop service the price, quality, service, and after-sales service are all things you need are provide. We are factory direct sales, wholesale and retail are acceptable, good quality and the price is favorable to help your business.

FAQ:
Q 1. What's the payment terms and payment method ?
A. We accept L/C, T/T, Credit Card, Western Union, Money Gram, etc.
Usually 30% deposit, 70% before shipment.
Q 2. How's the delivery time ?
A. It usually takes about 3-10 days after payment arrived.
Q 3. How about package ?
A. For the small UPS and the inverters less than 30kg will be packed in foams and cartons. For the big UPS and inverters heavier than 30kg will be packed in pallets or wood boxes .
Q 4. Would you accept to print our logo and design ?
A. Yes, we can print your logo on the inverters, UPS and cartons. Also welcomed your own design of these inverters and UPS.
Q 5. What kind of certificates you have ?
A. For company have ISO9001, ISO14001, TUV and SGS factory certification.
For UPS and power inverters, we have CE,IEC, KC and ETL, etc.
Q6. When the product have problem, how to solve it ?
A. We have a professional after-sales team, in case of any problems, first contact us to help you solve, we have a 24 months warranty and lifetime technical support. We will track product usage until you are satisfied.
CONTACT US:
https://zlpower.en.made-in-china.com/contact-info.html
