Automatic Steel Nail Making Machine Price, Concrete Nail Manufacturing Machine

Product Description

Company Profile

Our factory

Our Factory cprofessional manufactures nail making machine,wire drawing machine and the accessory equipments since 1995
Capacity 1000pcs per year ,customers cover Asia,middle East,Africa and latin-America ariea.
Our company has CE ,ISO9001 certificate and our engineer arrange for machine accommodation in customer's factory.

Product Parameters
Product Description

the automatic steel nail making machine manufacturer adopts plunger type structure so as to ensure the features such as high speed, low noise and less impact. Especially, it can make high quality of oil rivet nail and other shapes nails used for high speed welding nailer and nail gun.

parameter	unit	Z94-6.5C	Z94-5.5C	Z94-4C	Z94-3C	Z94-2C	Z94-1C
Dia of nail max	mm	6.5	5.5	4.5	3.4	2.8	1.6
Dia of nail min	mm	4.5	3.7	2.8	1.8	1.2	0.9
Length of nail max	mm	200	150	100	80	50	25
Length of nail min	mm	100	80	50	30	16	9
Dsigned out put	pcs/min	160	200	260	320	350	450
Moter power	kw	11	5.5	4	3	2.2	1.5
Weight(approx)	kg	5000	2500	2000	1400	1200	560
Overall dimensions	mm	3200x2200x2200	2800x1800x1800	2200x1600x1650	2000x1400x1400	1700x1300x1400	1500x1300x1200

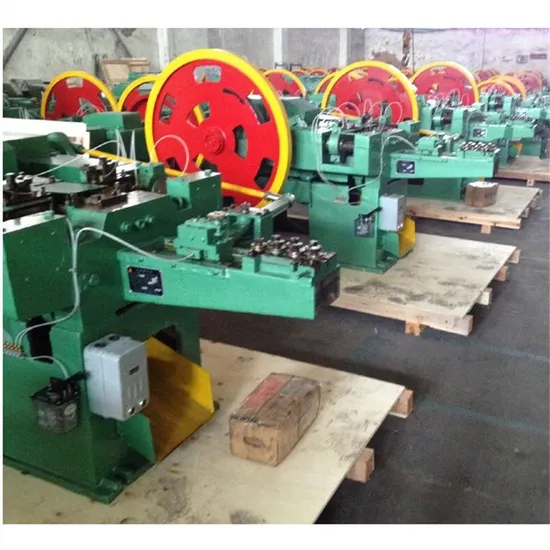

Detailed Photos

Wire nail making material :Q195/Q235/SAE1006/SAE1008
Related Machinery

For wire drawing process

Model	LW-1-6/560	LW-1-7/450	LW-1-6/350
Material intensity	δb≥110kg/mm2	128kg/mm2	δb≥140kg/mm2
Max diam of material	6.5mm	3.4mm	2.5mm
Min diam of material	2mm	1mm	0.75mm
Diam of block	1-6/560	1-7/450	1-6/350
Max average condensation	30%	20%	21%
Total condensation	78-88.5%	77.90%	78%
Max.speed of block	245m/min	346.9m/min	200m/min
Total power	18.5-30kw	7.5-11kw	7.5-11kw
Weight	2000kg	1500kg	1000kg
Overal size	1700x1150x1750mm	1520x810x1700mm	1400x800x1500mm

Wire drawig Accessory equipment

For the nail making process
Nail making accessory equipment
1.Wire pay-off stand
2.Steel nail cutter grinder
3.Nail polish machine for capacity 400kg/600kg/1000kg/2000kg

Type	SD-400	SD-600	SD-1000	SD-2000
Capacity	400kg	600kg	1000kg	2000kg
Power of motor	3kw	4kw	7.5kw	11kw
Overall size	1640x90x1000	1960*1070*1400	2000x1500x1400	2500x1500x1600

Packaging & Shipping
All nail making machine are well fix and packed againest long time shipping on sea or train.
1.Steel frame+plastic film
2.wooden box
3.wooden palets

Our Services
Your concern is our concern!Your request is our request!Your value is our value!
1. 28years experience in nail &wire machinery manufacture ,strictly cover all requirements for customer.
2. offer ultimate customization and personalized solutions
3. factory lay-out and Installation support
4. Engineer available for machine adjusting and testing abroad.

Company certificate
Our nail making machine have though the ISO9001 and CE certificate
Our customers show

Our Customer show:
