Premium Upright Fire Sprinkler Head for Enhanced Safety

Product Description

PRODUCT INFORMATION

Product Description Brass Color Fire Sprinkler with ISO, CCC Certificates
1. Widely use in office, school, kitchen and warehouse;
2. Work by temperature sensitive;
3. Vairous types to choose;
4. Easy install and use.

Characteristics and Functions
Model	Fire sprinkler
Material	Brass, chrome plating
Type	UL FM approved brass color upright type ESFR fire sprinkler
Norminal diameter(mm)	15DN or 20DN
Connecting thread	R1/2 or R3/4
Glass bulb color	Red
Temperature rating	68°C
Flow Rate	80±4 or 115±6
Bulb	3mm or 5mm
Response	quick response

Basic Parameters of Fire Sprinkler
Model	Norminal Diameter	Thread	Flow Rate	Style
T-ZSTP	DN15	R1/2	80±4	Upright/Pendent
	DN20	R3/4	115±6
T-ZSTX	DN15	R1/2	80±4	Pendent
	DN20	R3/4	115±6
T-ZSTZ	DN15	R1/2	80±4	Upright
	DN20	R3/4	115±6
T-ZSTBS	DN15	R1/2	80±4	Horizontal Sidewall
	DN20	R3/4	115±6
ZSTDY	DN15	R1/2	80±4	Pendent
	DN20	R3/4	115±6

Nozzle Rated Temp	Max Ambient Temp	Glass Ball Color
57°C	27°C	Orange
68°C	38°C	Red
79°C	49°C	Yellow
93°C	63°C	Green
141°C	111°C	Blue
182°C	152°C	Purple

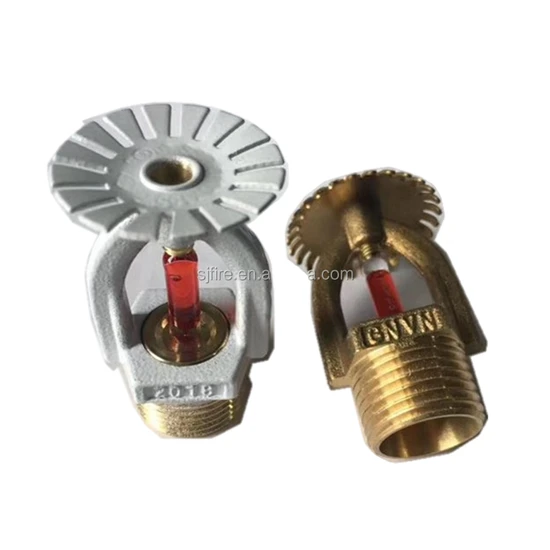

PRODUCT SHOW
1111

111

1111

MAIN PRODUCT
PRODUCTION PROCESS
EXPRESS SERVICE

FAQ
1.What you can supply to me?
We could supply hoses, we can produce 30 million meters one year including lay flat hosesfire hose, rack hose, industrial hose, forestry hose, snowmaking hose, irrigation hose, draghose, colored hose, PVC layflat hoses. Hose size is from 3/4" to 16" with 200m or more foryou .We can promise that qive you the cheapest price and superior auality in the same field
2. Can you customize the products as request?
Yes, we do OEM and ODM , we could make the product suggestion based on your drawing orrequirement.
3.Do you test all your goods before delivery ?
Sure,we are free to send you a sample and you just need to pay the delivery fee.
4. How do you make our business long-term and good relationship?
We keep good quality and competetive price to ensure our customers benefit.We respectevery customers as our friend and we sincerely do business and make frends with them.
