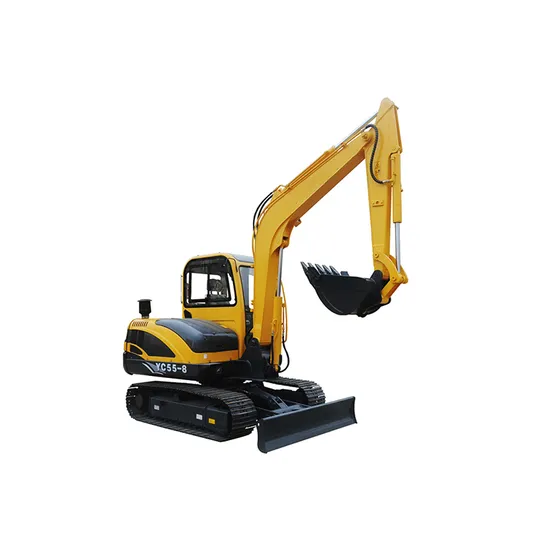

China Top Brand 5.5 Ton Yc55-8 Crawler Excavator
Basic Info.
Model NO.
Yc55-8
Type
Crawler Excavator
Usage
Mining Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Size
Small-Scale
Certification
CE
Condition
New
Power of Engine
39-45/2200kw/Rpm
Min.Ground Clearance
340mm
Walking Speed
2.8/4.7km/H
Platform Slewing Speed
10.5rpm
Max.Digging Height
5700mm
Max.Dumping Height
3855mm
Max.Digging Depth
3789mm
Max.Digging Radius
6380mm
Transport Package
Nude Package
Specification
4510*1450*2395 mm
Trademark
Liuzhou
Origin
China
HS Code
8429119000
Production Capacity
1000
Packaging & Delivery
Package Size
606.00cm * 191.00cm * 227.00cm
Package Gross Weight
5710.000kg
Product Description
China Top Brand 5.5 Ton Yc55-8 Crawler ExcavatorProduct Description
* Equipped with China engine that meets Stage III emissions, it has strong power, and the industry's same tonnage industry provides large power output and flow, on the basis of ensuring high efficiency, it also has higher reliability and durability
* The new main pump displacement is supplied to the system on demand, the standby is automatically reduced, and the work is provided on demand, reducing energy consumption and energy saving
* Air filter, oil filter, diesel filter, antifreeze, lubrication point and other main maintenance points are centralized
layout,realizing convenient one-stop maintenance and inspection.
Product Parameters
| Parameter | YC35-8 | YC35SR | YC55-8 | YC55SR |
| Dimension Paramneter | ||||
| Operating weight(kg) | 3740 | 3800 | 5710 | |
| Standard Bucket Capacity(m³) | 0.12 | 0.12 | 0.2 | |
| Power of engine(kw/rpm) | 30.5/2200 | 29.2/2200 | 39-45/2200 | 30.5/2200 |
| Machine length(mm) | 5250 | 4650 | 6065 | 5715 |
| Machine height(mm) | 2470 | 2550 | 2715 | |
| Overall width(mm) | 1518 | 1800 | 1910 | 2000 |
| Crawler width(mm) | 300(Steel/Rubber Crawler) | 400 | ||
| Crawler length(mm) | 2100 | 2455 | 2600 | |
| Wheel-base(mm) | 1620 | 1910 | 2060 | |
| Min.ground clearance(mm) | 320 | 350 | 340 | 345 |
| Overall height(mm) | 1690 | 1510 | 2275 | |
| Height of engine hood | 1385 | 1425 | 1830 | 1600 |
| Width of platform(mm) | 1494 | 1740 | 1670 | 1936 |
| Width of bucket(mm) | 608 | 638 | 195 | 547 |
| Walking speed(low/high) | 2.4/4.3 | 2.8/4.7 | ||
| Platform slewing speed(rpm) | 11.5 | 11-13 | 10.5 | 10.4 |
| Operating Parameter | ||||
| Max.digging height(mm) | 5190 | 5100 | 5700 | 5940 |
| Max.dumping height(mm) | 3670 | 3630 | 3855 | 4050 |
| Max.digging depth(mm) | 3546 | 3120 | 3789 | 3790 |
| Max.digging radius(mm) | 5630 | 5460 | 6380 | 6360 |
| Max.horizontal digging lenth(mm) | 5486 | 5340 | 6196 | 6227 |
| Max.digging height radius(mm) | 3265 | 2948 | 4127 | 6370 |
| Min.slewing radius(mm) | 1992 | 2210 | 2670 | 2465 |
| Max.depth of bulldozer(mm) | 460 | 450 | 397 | 460 |
| Max.height of bulldozer(mm) | 210 | 389 | 251 | 350 |
| Max.digging force(kN) | 22.2 | 25.7 | 37.3 | 25.7 |
Contact
Send Message or Chat Now for Best price
Damon Han/Sales Manager
Goldzim Construction Machinery(Qingdao)Co.,Ltd.
Please let us know the main use, brand, power and other requirements of the purchased products.
We will recommend the related products to you.
