Basic Info.
Type
Special Purpose Grinding Machine
Automatic Grade
Automatic
Cylindrical Grinder Type
Saw
Blade Diameter
Ø110~Ø305mm
Range of Tooth Pitch
7~48mm
Grinding Wheel Specifications
Ø100mm
Grinding Wheel Stroke
0~28mm
Grinding Wheel Speed
6500r/Min
Working Air Pressure
≥0.45MPa
Supply Voltage
AC380V50Hz
Transport Package
Wooden Crate
Specification
1650× 1250× 1850mm
Production Capacity
30 Set/Year
Packaging & Delivery
Package Size
175.00cm * 135.00cm * 200.00cm
Package Gross Weight
1330.000kg
Product Description
Machine features

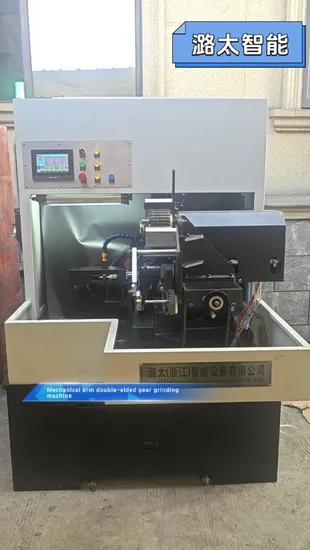

1. This machine is a special automatic equipment for grinding alloy circular saw blade on both sides.
2. The overall working part adopts thickening and strengthening casting base + guide slide block, which has good stability and higher precision of grinding products.
3. The use of manipulator up and down saw blade, simple and convenient operation, one person can operate multiple equipment.
4.Knife screen adjustment, can be arbitrarily set the grinding wheel during the process of feed and return tool combination mode.
5.The main part is controlled by servo, servo driven gear more accurate and stable.
6.Grinding wheel grinding has automatic compensation function, grinding wheel wear automatic compensation.
7.The machine is equipped with a hand-held pulse hand wheel, which makes it more convenient to adjust the machine.
8.The machine is equipped with automatic oil supply lubrication system, which can effectively increase the service life of the linear guide slide.
Technical parameter
Blade Diameter | Ø110~Ø305 | mm |
Range of tooth pitch | 7~48 | mm |
Front angle | 0°~25° | ° |
Grinding wheel specifications | Ø100ר20 | mm |
Grinding wheel stroke | 0~28 | mm |
Grinding wheel speed | 6500 | r/min |
Working air pressure | ≥0.45 | MPa |
Supply voltage | AC380V50Hz | V |
Power | 2.5 | KW |
Weight | 1300 | Kg |
Machine tool dimensions | 1650×1250×1850 | mm |
