Maxima M1e Auto Collision Repair Bench, Car Body Machine, Auto Straightening Bench

Product Description

Specifications

Model	L2E	L3E	M1E	M2E	B1E	B2E
Platform length	5200mm	5500mm	5500mm	6100mm	6100mm	6500mm
Platform width	2100mm	2100mm	2236mm	2236mm	2236mm	2236mm
Lifting way	Tiltable lift		Tiltable lift & Parallel lift
Working height	500mm		380-1020mm
Pulling power	10 tons
Working range	360 degrees
Lifting capacity	3500kgs
Weight	2200kgs	2500kgs	2700kgs	3000kgs	3100kgs	3300kgs
Power	380V,3phase/220V,1phase

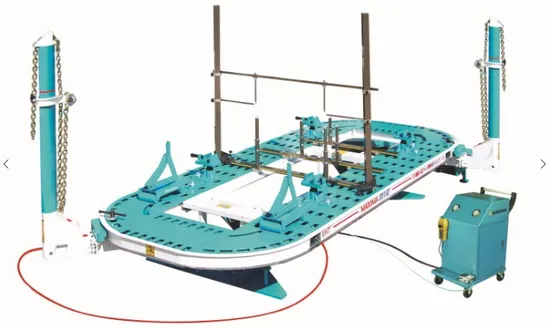

Maxima Car Bench M1E
Platform length: 5500mm
Platform width: 2236mm
Platform height: 380-1020mm
Max. pulling power of the tower: 10T
Working range: 360°
Voltage: 380V,3phase/220V,1phase
Electric pump power: 1.5kw
Max. air pressure: 0.8MPa
Max. lifting capacity: 3500kg
Weight: 3000kg
Specifications:
There's only one electric-hydraulic pump to control the up&down of the platform,
RSJ and pulling towers.
The equipment is highlighted by its rigid platform welded by milled steel tubes.
The parallel lifting platform has flexible working height from 300 mm to 800/1020
mm to meet the vehicle drive-on/off and the stature of the workers.
The pulling towers with patented round collar glide with ease around the entire
equipment.
The hydraulic system has large pulling capacity, long lifespan and low malfunction.
The patented Universal Clamp can anchor all kind of chassis rock-solid.
The platform can work well with all kinds of measuring systems.
ISO9001:2008 certified.
Company Profile:
Founded in 1992, MIT Group has been focusing on automobile after-sales markets over the years, and has grown to be the leader in the industry, supplying state-of-the-art products and services to our esteemed clients all over the world. The Group's brands include MAXIMA, Bantam, Welion, ARS, and 999. As a subsidiary under MIT Group, MAXIMA is a professional manufacturer of auto-body repair systems and heavy duty column lifts, ranking as No.1 in the industry in China over the years, as taking up 65% of Chinese market and shipping to 40+ countries overseas. Proudly, MAXIMA is the unique company in China that can provide the most professional innovative solutions, technical development, training and customer support for auto-body repair and maintenance. We will look forward to building business cooperation with distributors and customers worldwide.
Package & Delivery
1. Car Bench

2. Heavy Duty Column Lift

Customers & Exhibitions

Qualifications & Certifications (ISO, CE, ALI certified)
FAQ
Q1: What is your terms of payment?
A: 30% TT as deposit upon order confirmation, 70% TT as balance before delivery.

Q2: What is your standard leadtime?
A: For car bench, the standard leadtime is 30 days after order confirmation.
For electronic measurement system, the standard leadtime is 20 days after order confirmation.

For mobile column lift, the standard leadtime is 40 days after order confirmation.
For big platform and platform lift, the standard leadtime is 50 days after order confirmation.

Q3: What delivery terms do you offer?
A: EXW, FOB, CFR, CIF, DDU.

Q4: Do you test all your products before delivery?
A: Yes, all products are 100% tested before delivery.

Q5: Why do we choose MAXIMA?
A: MAXIMA is ISO certified manufacturer, CE certified, and the only one ALI certified brand in China, offering best quality products at a very competitive price.
We offer 2 years of free warranty for all products; we have an overseas after-sales engineer ready to fly to any site upon emergent request from customer.

Q6: What exhibitions do you attend?
A: Inside China, we attend AMR Beijing in Mar. and Automechanika Shanghai in Dec.
In overseas, we attend Autopromotec Bologna in May and Automechanika Frankfurt in Sep.
Warmly welcome to visit our factory in Yantai and our booth in the shows.

Q7: Do you have any branch in overseas?
A: We have a branch office in California, USA, covering the sales of North American countries including U.S, Canada, Mexico etc. MAXIMA U.S has ready stock and will make delivery to North American countries immediately upon order confirmed.
For all the rest countries and regions, we will do build-to-order, sales and delivery from MAXIMA China headquarters.
