PVC PE Film Cutting Winding Machine

Product Description

PVC PE Film Cutting Winding Machine
Usage: This machine is mainly used for cutting and rewinding thin sheets, greatly improving production efficiency.
Model: 1000mm
Descriptions:
This Automatic Cutting Winding Machine is suitable for cutting nonwoven fabric, meltblown cloth, hot air cotton fabric and other roll materials. It has the advantages of high precision, fast speed, neat winding and so on. At the same time, the Slitting Rewinder Machine is easy to operate, beautiful appearance and stable performance. The machine can automatically record meters, cut, automatic tension control, abnormal automatic alarm, parking and other functions.
Features:
1, Frequency control of main engine
2, The combination of the general control box, flexible and convenient operation
3, Air expansion shaft (installed slip shaft), magnetic powder brake, automatic tension control is adopted for winding
4, The feeding length is automatically measured
Technical parameters:

Model	1000
Max.slitting width	1000mm
Max. unwinding diameter	600mm
Max. rewinding diameter/roll	600mm
Unwinding deviation correction	≤0.5mm
Min.slitting width	20mm
Slitting accuracy	±0.1mm
Slitting speed	5-80m/min
Slitting thickness	15-400g/m2
Slitting material	PVC/PE/Leather/Nonwoven Fabric/Meltblown Cloth/ plastic film etc
Rewind motor power	2.2KW
Main motor power	1.5KW
Winding and unwinding air expansion shaft	Standard diameter 74mm(can be customized)

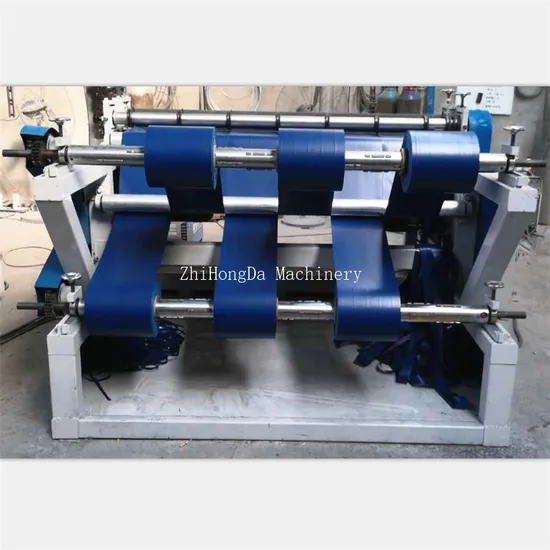

Products show:
Cutting materials:
Packing and Delivery
Standard model: 800mm-1800mm
We can accept customized any other model according to users requirements.
Welcome to inquire and negotiate.
Thanks for your attention!
