1325 4-Axis Atc CNC Wood Router Machine Designed for Furniture Woodworking

Product Description

1325 4-axis ATC CNC wood router machine designed for furniture woodworking 04
Product Description

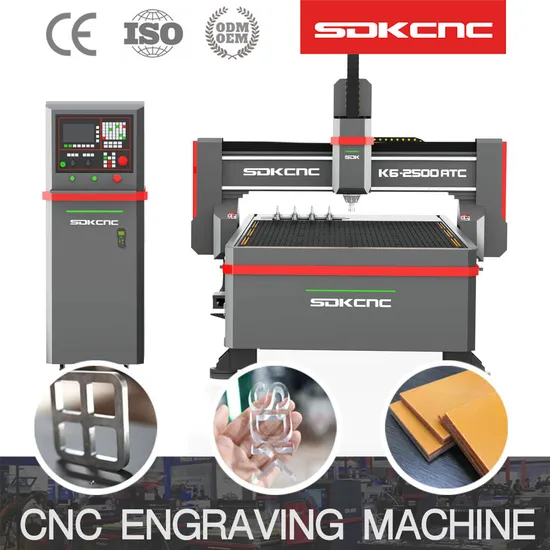

Δ K6-2500 ATC (Industrial control Gen 1) is a Heavy-duty engraving & carving Machine (mini-character engraving machine ) independently developed and produced by SDKCNC.It can be used for hi-speed engraving and milling of soft metals and plates processing.
Δ Its robust architecture,forged from Heavy duty steel structure (Stress Relief Treatment),undergoes a thorough time stress relief process. The whole machine adopts AC servo drive,Y-axis dual motor drive,so it's running stably and reliably.Adopts precision milling helical gear rack, straight guide rail,silent screw rod.Standard ATC system with handle control, with a capacity of 4 inline tool magazines (upgradable)
Δ It widely applicable to the engraving and milling of copper,aluminum,stone,acrylic,wood,aluminum-plastic ,insulating boards,epoxy resin plate,carbon fiber composited materials and the processing of various plates and soft metals.
01 BED STRUCTURE
Heavy duty welded bed with Thick-walled square tube in stress aging relief
All planes and installation holes are precision machined by gantry milling
02 TRANSMISSION
Transmission:X/Y-axis with helical rack & linear guide rail,Z-axis with mute screw
03 DRIVE MODE
The whole machine adopts AC servo drive,Y-axis dual motor drive,
04 SPINDLE
This facility adopts high pulling torque spindle ,Standard water cooling
spindle power 7.5 kw,speed from 1-24000RPM
Interchangeable air-cooled spindle
05 DUST COLLECTION SYSTEM(OPTIONAL)
The optional accessories has the water tank,water spirit system etc .
07 WORKING TABLE
phenolic resin suction clip intergrated table with T slot
standard 5.5kw aluminum alloy vacuum pump
08 TOOLS MAGAZINE
The tools magazine have 4 in-line magazines (can be upgraded to 8)
09 INDUSTRIAL CONTROL SYSTEM
This Machine adopts ATC by industrial control system
Standard NK280, Upgradeable

Product Parameters

Technical Parameter
Working Area	1300 x 2500 mm
Repeat position accuracy	±0.01 mm
Spindle Power	7.5Kw (1-24000 RPM)
Spindle Type	water-cooling
Spindle	Single-spindle
Control system	NK280
Dust Collecter	Optional
Drive motor	AC Servo Motor + Reducer
Type Name	K6-2500 ATC (Industrial control Gen 1)
Working Table	Phenolic resin suction clip intergrated table
Vacuum Pump	5.5KW

Application Industry
Δ It widely used for high speed cutting and engraving of Acrylic,PVC,wood,aluminum plates,insulting boards,ABS board,aluminum-plastic plates,thick foam,PVC,MDF board ,expansion sheet.It can also carve and cut various soft metals, such as copper, aluminum, etc
Δ It widely used for abnormity edges and complex patterns processing ,such as advertisement logo,sliding door packaging,furniture,showcase,architectural models,etc
