Plain Weave Wire Cloth

Plain Weave Wire Cloth

US$100.00 30 Square Meters (MOQ)

Basic Info.

Model NO.
Plain weave wire cloth
Material
SUS304
Hole Shape
Square
Application
Filter, Construction Wire Mesh, Protecting Mesh, Screen, Decorative Mesh, Fence Mesh, Barbecue Wire Mesh, Window Curtain, Cages, Medicine,Industrial,Autombile,Cooking,Chemical
Type
Stainless Steel Plain Wire Mesh
Material Type
Stainless Steel Wire
Weave Technique
Plain Weave
Wire Mesh Width
0.5-6m
Technique
Woven
Nickels
10%
Certification
ISO9001
Transport Package
Plywood Case
Specification
2 mesh count -400 mesh count
Trademark
SNT
Origin
Anping

Product Description

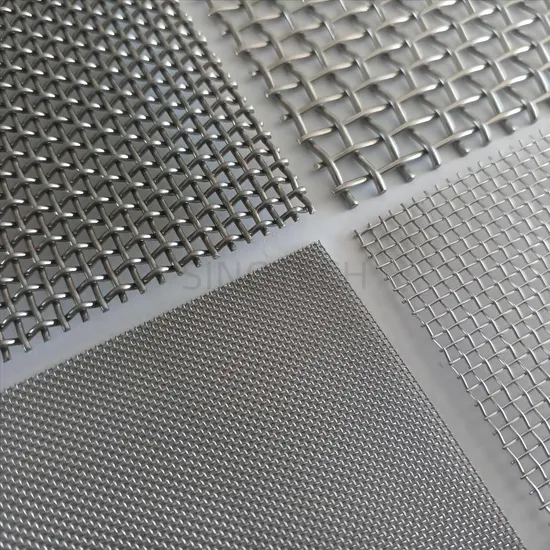

Plain weave wire cloth also named square mesh.it is used for the majority of wire cloth.Each warp wire crosses alternately above and below every weft wire and vice versa.Warp and weft wires are normally of the same wire diameter. Square meshes are used in applications like sieving,filtration,shielding technology and lightning strike protection.
Specification
Material: 304,304L,316/316L,317L,904L,Duplex steel etc.
Plain weave Specifications
Product code Warp mesh Weft mesh Wire diameter Aperature Open area
inch mm inch mm (%)
SPW-2/3.0 2 2 0.1180 3.0 0.382 9.70 58.4
SPW-4/1.6 4 4 0.0630 1.6 0.2 4.75 56.0
SPW-4/1.2 4 4 0.0470 1.2 0.203 5.16 65.9
SPW-6/1.2 6 6 0.0470 1.2 0.120 3.04 51.6
SPW-8/0.7 8 8 0.0270 0.7 0.098 2.49 61.5
SPW-10/0.8 10 10 0.0315 0.800 0.069 1.74 46.9
SPW-10/0.5 10 10 0.0200 0.508 0.080 2.03 64.0
SPW-12/0.6 12 12 0.0235 0.60 0.060 1.52 51.6
SPW-12/0.5 12 12 0.0200 0.508 0.063 1.61 57.8
SPW-14/0.6 14 14 0.0235 0.597 0.048 1.22 45.0
SPW-14/0.5 14 14 0.0200 0.508 0.051 1.31 51.8
SPW-16/0.6 16 16 0.0235 0.597 0.039 0.99 38.9
SPW-16/0.45 16 16 0.0175 0.445 0.045 1.14 51.8
SPW-18/0.4 18 18 0.0160 0.406 0.040 1.00 50.7
SPW-20/0.5 20 20 0.0200 0.508 0.030 0.76 36.0
SPW-20/0.4 20 20 0.0160 0.406 0.034 0.86 46.2
SPW-24/0.35 24 24 0.0140 0.356 0.028 0.70 44.1
SPW-30/0.3 30 30 0.0120 0.305 0.021 0.54 41.0
SPW-30/0.25 30 30 0.0100 0.254 0.023 0.59 49.0
SPW-35/0.25 35 35 0.0100 0.254 0.019 0.47 42.3
SPW-40/0.25 40 40 0.0100 0.254 0.015 0.38 36.0
SPW-50/0.2 50 50 0.0080 0.203 0.012 0.30 36.0
SPW-50/0.15 50 50 0.0060 0.152 0.014 0.36 49.0
SPW-60/0.15 60 60 0.0060 0.152 0.011 0.27 41.0
SPW-60/0.13 60 60 0.0050 0.127 0.012 0.30 49.0
SPW-80/0.13 80 80 0.0050 0.127 0.008 0.19 36.0
SPW-80/0.1 80 80 0.0040 0.102 0.009 0.22 46.2
SPW-90/0.11 90 90 0.0045 0.114 0.007 0.17 35.4
SPW-90/0.1 90 90 0.0040 0.102 0.007 0.18 41.0
SPW-100/0.11 100 100 0.0045 0.114 0.006 0.14 30.3
SPW-100/0.1 100 100 0.0040 0.102 0.006 0.15 36.0
SPW-120/0.09 120 120 0.0035 0.089 0.005 0.12 33.6
SPW-120/0.08 120 120 0.0030 0.076 0.005 0.14 41.0
SPW-150/0.06 150 150 0.0025 0.064 0.004 0.11 39.1
SPW-180/0.06 180 180 0.0023 0.058 0.003 0.08 34.3
SPW-200/0.05 200 200 0.0020 0.051 0.003 0.08 36.0
SPW-250/0.04 250 250 0.0016 0.041 0.002 0.06 36.0
SPW-270/0.035 270 270 0.0014 0.035 0.002 0.06 39.4
SPW-300/0.03 300 300 0.0012 0.030 0.002 0.05 41.7
SPW-325/0.028 325 325 0.0011 0.028 0.002 0.05 41.2
SPW-400/0.025 400 400 0.0010 0.025 0.002 0.04 36.0

Note: Special specifications can also be available according to customers' requirement.
Applications: Mainly used in particle screening and filtration, including petrochemical filtration, food and medicine filtration, building materials screening etc.
The standard width is between 1.3m and 3m.Customer-specific productions are available up to a width of 5.0m-6.0m.
The standard length is 30.5m(100 feet). Other sizes can be customized.
Plain weave metal woven mesh is a highly adaptable material with a broad range of applications across multiple industries. Its unique combination of strength, precision, and versatility makes it an indispensable component in modern technology and infrastructure. Whether for filtration, screening, heat resistance, or decorative purposes, plain weave metal woven mesh continues to prove its value in diverse fields. 1. Filtration and Separation Plain weave metal woven mesh is widely used in filtration systems due to its precise and consistent pore size. Key applications include:
Oil and Gas Industry: Filtering out impurities from crude oil, natural gas, and refined products.
Chemical Processing: Separating solids from liquids in chemical reactions and purification processes.
Food and Beverage: Ensuring product purity by filtering contaminants during production and packaging.
2. Screening and Sizing The uniform structure of plain weave mesh makes it ideal for screening and sizing applications, such as:
Mining and Quarrying: Sorting and classifying minerals, ores, and aggregates by size.
Agriculture: Grading grains, seeds, and other agricultural products.
Construction: Screening sand, gravel, and other construction materials.
3. Heat Resistance and Insulation Due to its ability to withstand high temperatures, plain weave metal woven mesh is commonly used in:
Aerospace: As heat shields and insulation materials in aircraft and spacecraft.
Automotive: In exhaust systems and catalytic converters to manage heat and reduce emissions.
Industrial Furnaces: As protective barriers and heat-resistant linings.
4. EMI/RFI Shielding Plain weave metal woven mesh provides excellent electromagnetic and radio frequency interference (EMI/RFI) shielding, making it suitable for:
Electronics: Protecting sensitive electronic components from interference.
Telecommunications: Shielding cables and equipment to ensure signal integrity.
Medical Devices: Shielding medical equipment from electromagnetic interference.
5. Decorative and Architectural Applications The aesthetic appeal and structural integrity of plain weave metal woven mesh make it a popular choice in:
Interior Design: As decorative panels, room dividers, and lighting fixtures.
Facade Cladding: Enhancing the exterior of buildings with a modern and sleek look.
Landscaping: Used in garden structures, artistic installations, and protective barriers.
6. Industrial and Mechanical Uses Plain weave metal woven mesh is employed in various industrial and mechanical applications, including:
Conveyor Belts: For transporting materials in manufacturing processes.
Vibration Damping: Reducing vibrations in machinery and equipment.
Reinforcement: Strengthening composite materials in construction and manufacturing.
